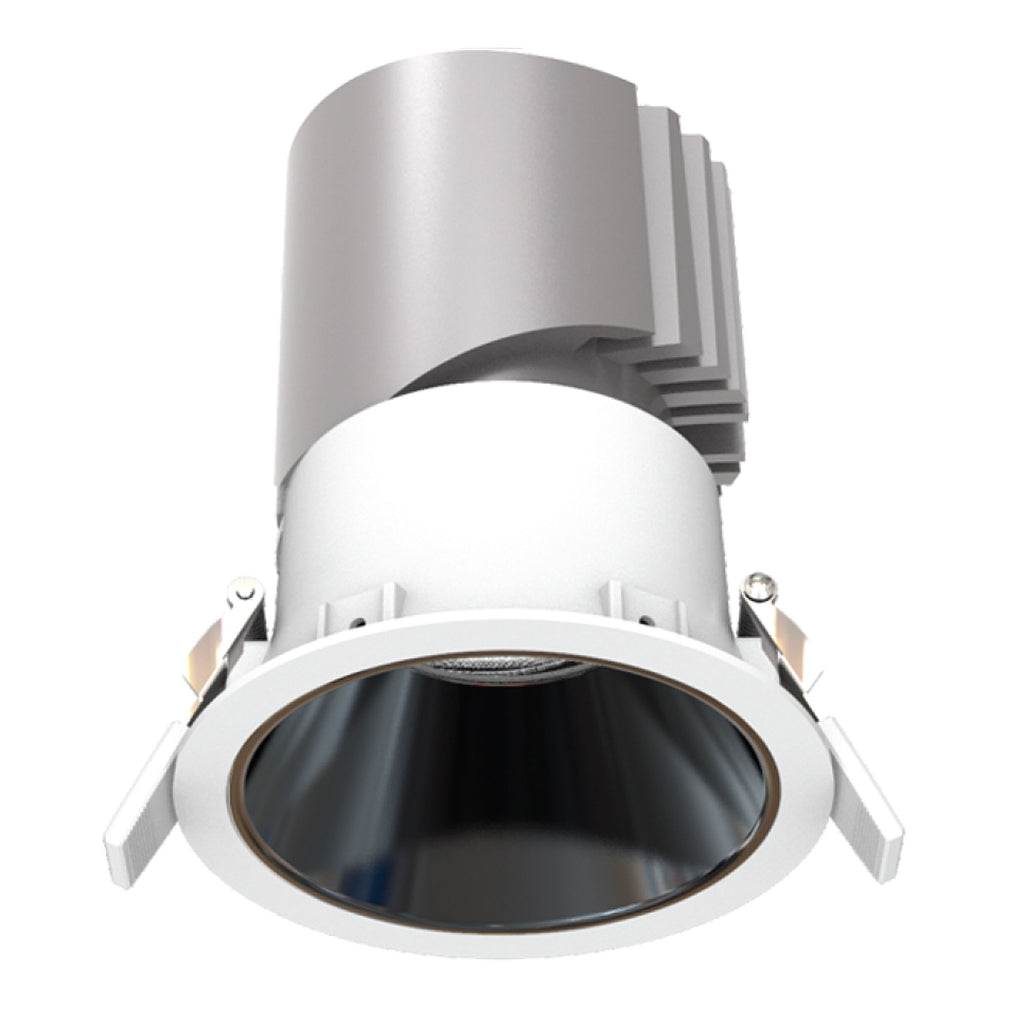

VONN VELLA VM090-VF92RA02 Residential Line 5" ETL Certified Technical LED Downlight with Adjustable Round Trim

SKU: VM090-VF92RA02   VONN Lighting

EnabLED - Licensing Program for LED Luminaires and Retrofit Bulbs


Special Order: Contact Sales 1-888-604-8666

VELLA Residential Line 5" ETL Certified Technical LED Downlight with Adjustable Round Trim, VM090-VF92RA02
Installation Guide Download
Specification Sheets Download
IES PHOTOMETRIC FILE (PDF) Download - 28W 15D
Download - 28W 24D
Download - 28W 38D
Download - 28W 55D
Download - 34W 15D
Download - 34W 24D
Download - 34W 38D
Download - 34W 55D
IES PHOTOMETRIC FILE (IES) Download - 28W 15D
Download - 28W 24D
Download - 28W 38D
Download - 28W 55D
Download - 34W 15D
Download - 34W 24D
Download - 34W 38D
Download - 34W 55D

Integrated LED Technical Downlight, VELLA Residential Line
• Housing Finish: Matte Silver
• Insert Color: Black
• Anti-Glare Accessory Options: Honeycomb Filter, Soft Lens
• Installation Housing Options: NON-IC New Construction, Remodel, IC Rated Housing
• Adjustable Round Trim
• Overall Dimensions: 5.75" Diameter x 6.5"H
• Cut-Out Dimensions: 5.12"
• Ceiling Thickness: 0.04"- 0.8" for spring clips, 0.3"- 0.8" for spring plate
• Beam Angle Options: 15, 24, 38, 55 degrees
• Dimming Options: Triac, 0-10V
• Driver Included
• CCT Options: 2700K, 3000K, 3500K, 4000K, 5000K or Dim to Warm: 1800K-3000K Kelvin color temperatures (to be selected prior to order)
• Luminous Flux 3000K: 30W engine 2622-2703lm, 35W engine 3104-3231lm
• Wattage Options: 30W or 35W engines
• Input Voltage Options: 120V or 120-277V
• Operating Range: -20~ +40℃
• CRI 90+: is the highest measurement of light about the accuracy of color appearance
• IP Rate Options: IP20 (dry rated), IP44 (damp rated)
• ETL Certified, cETL, CE Certified, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 3 Year Limited Warranty
***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4"***
