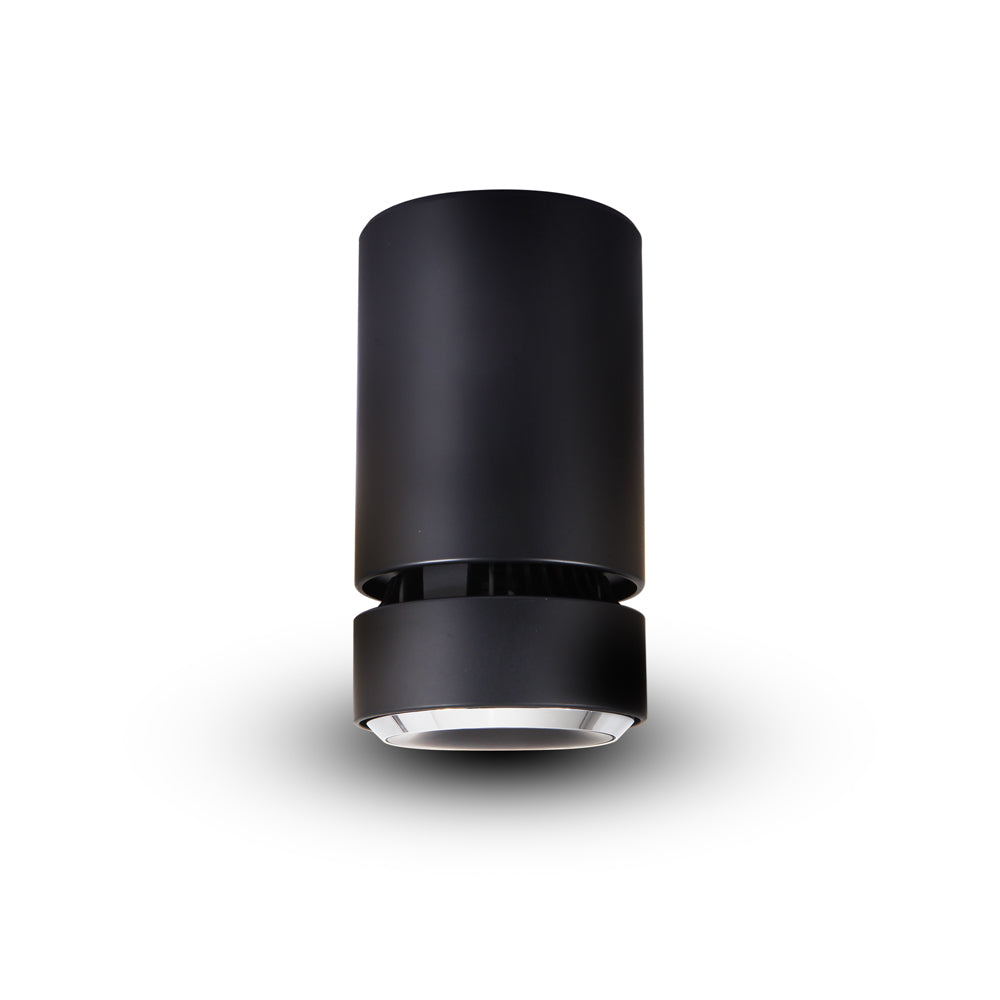

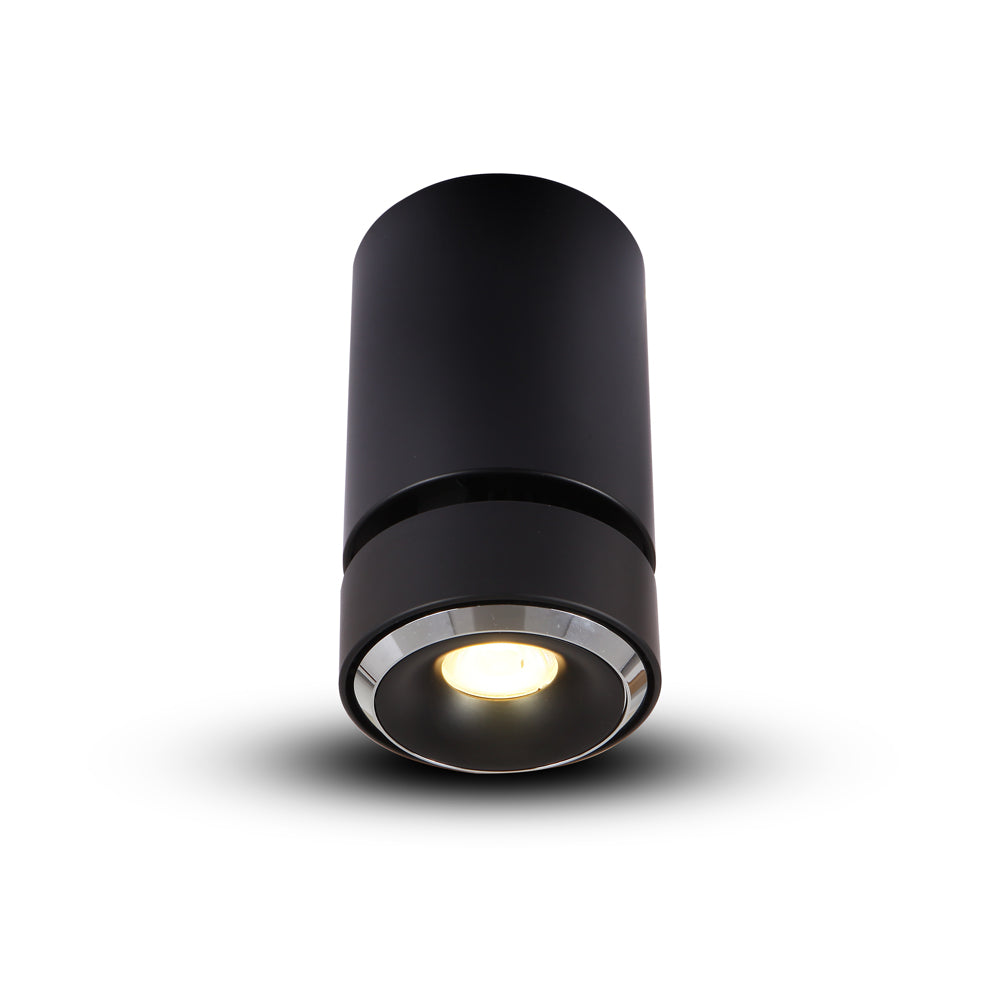

VONN ORBIT VMCL000701A020BL 4.25" 1 LIGHT 100-277V LED SURFACE MOUNTED ADJUSTABLE DOWNLIGHT, ETL COMMERCIAL GRADE, Black

SKU: VMCL000701A020BL   VONN Lighting

EnabLED - Licensing Program for LED Luminaires and Retrofit Bulbs
$244.95

51 In Stock.

QUICK SHIP!  Ship In 24-48 Hours

LED Surface Mounted Adjustable Downlight VMCL000701A020BL, Stock Item Beam Angle 36, Black



Installation Guide Download
Specification Sheets Download
Line Drawing Download
IES Photometric File Download
IES Photometric File (IES) Download

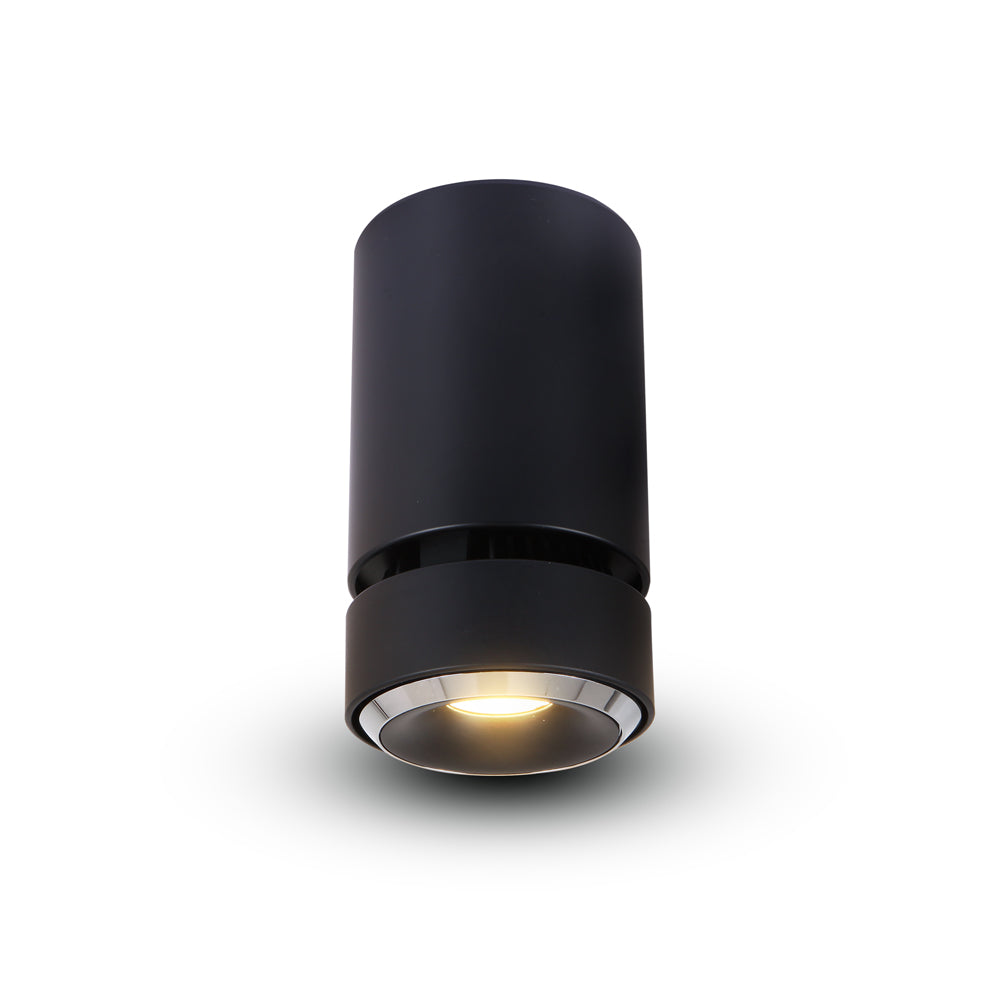

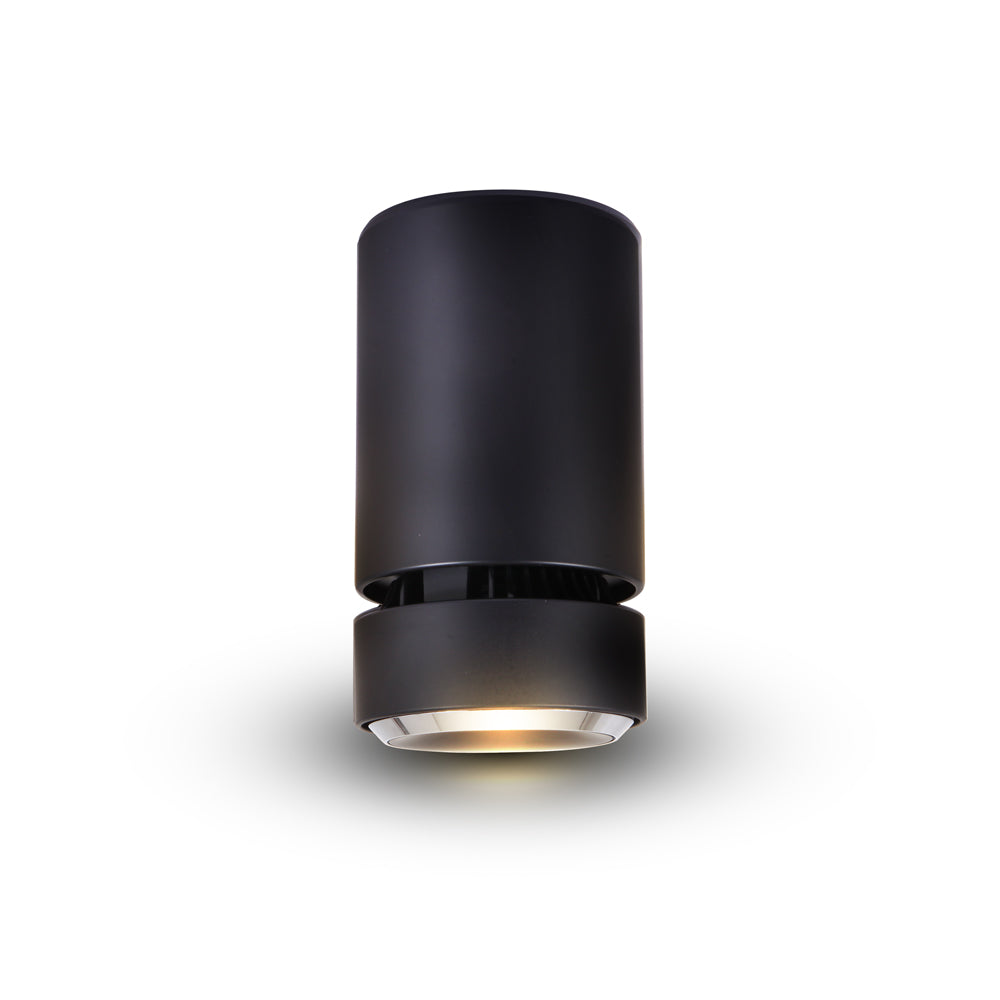

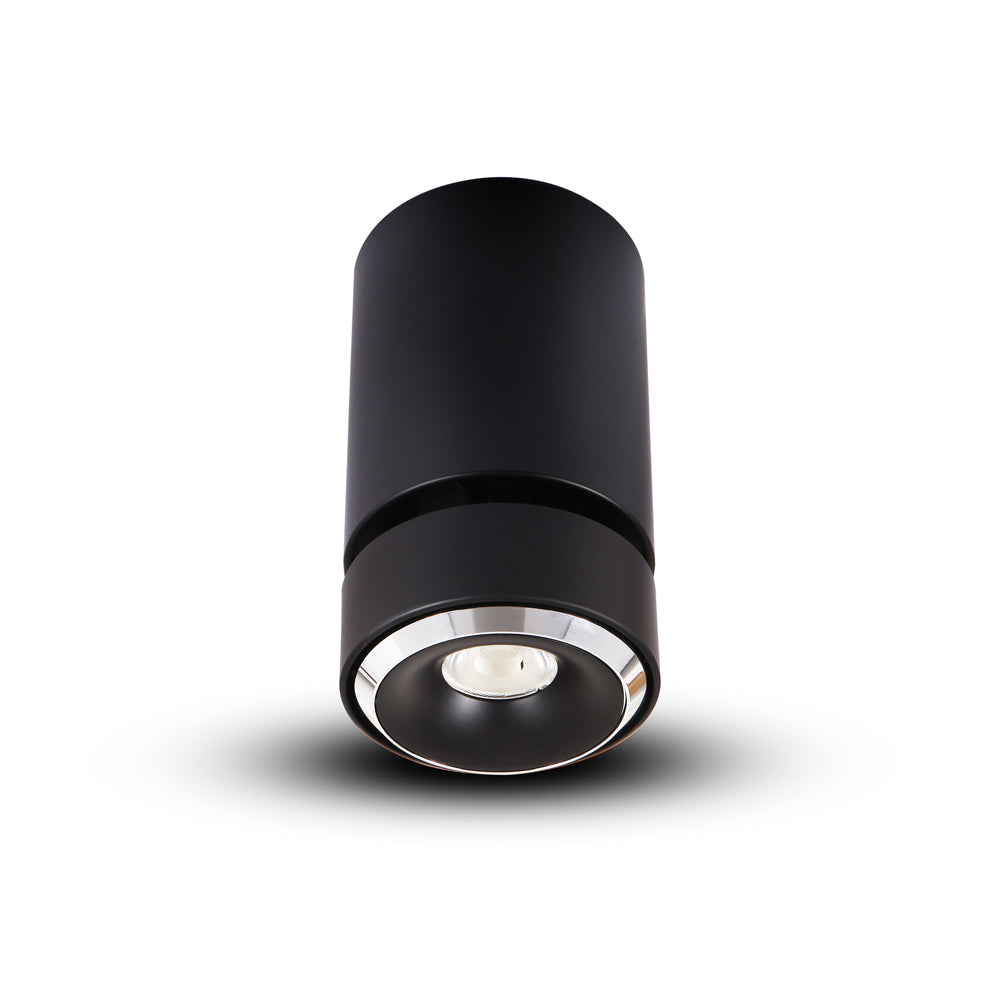

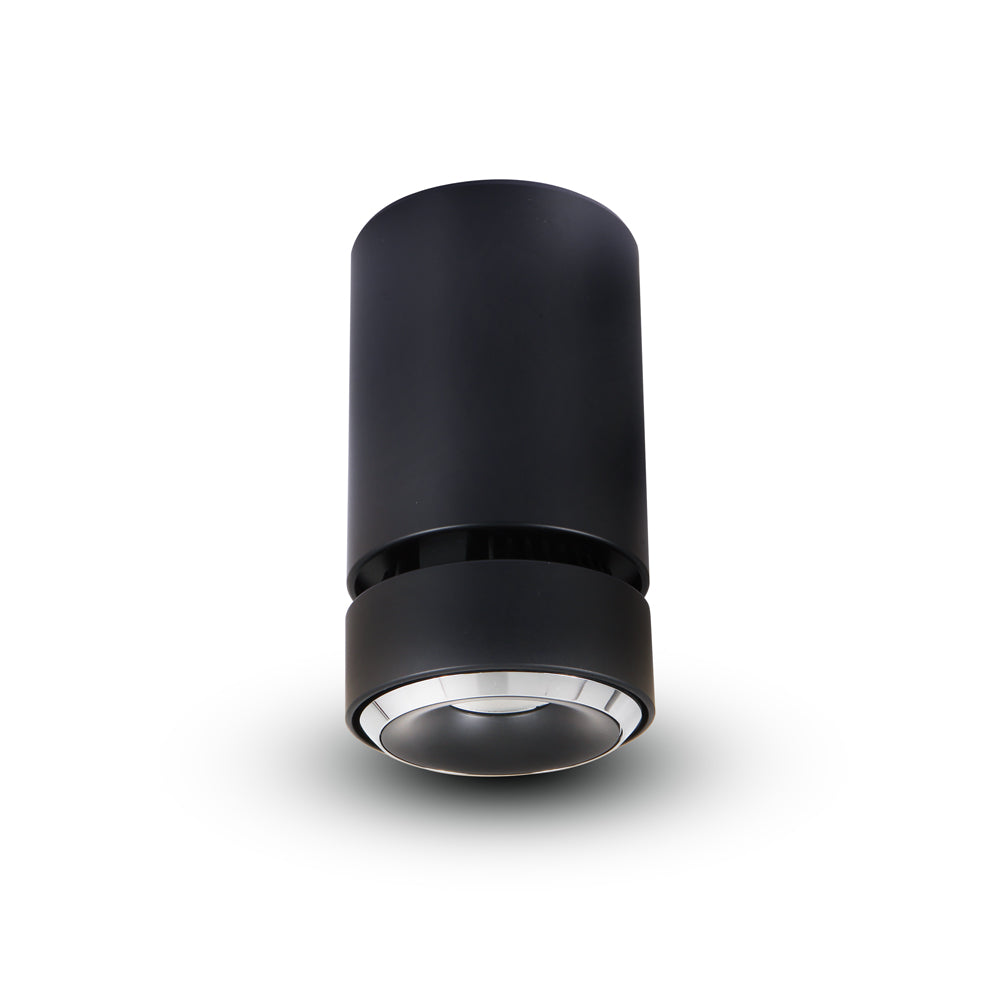

LED Surface mounted adjustable downlight, ORBIT Series
• Aluminum body structure available in 2 finishes Black and White
• Integrated LED fixture, surface mounted with remote driver (included)
• IC Rated

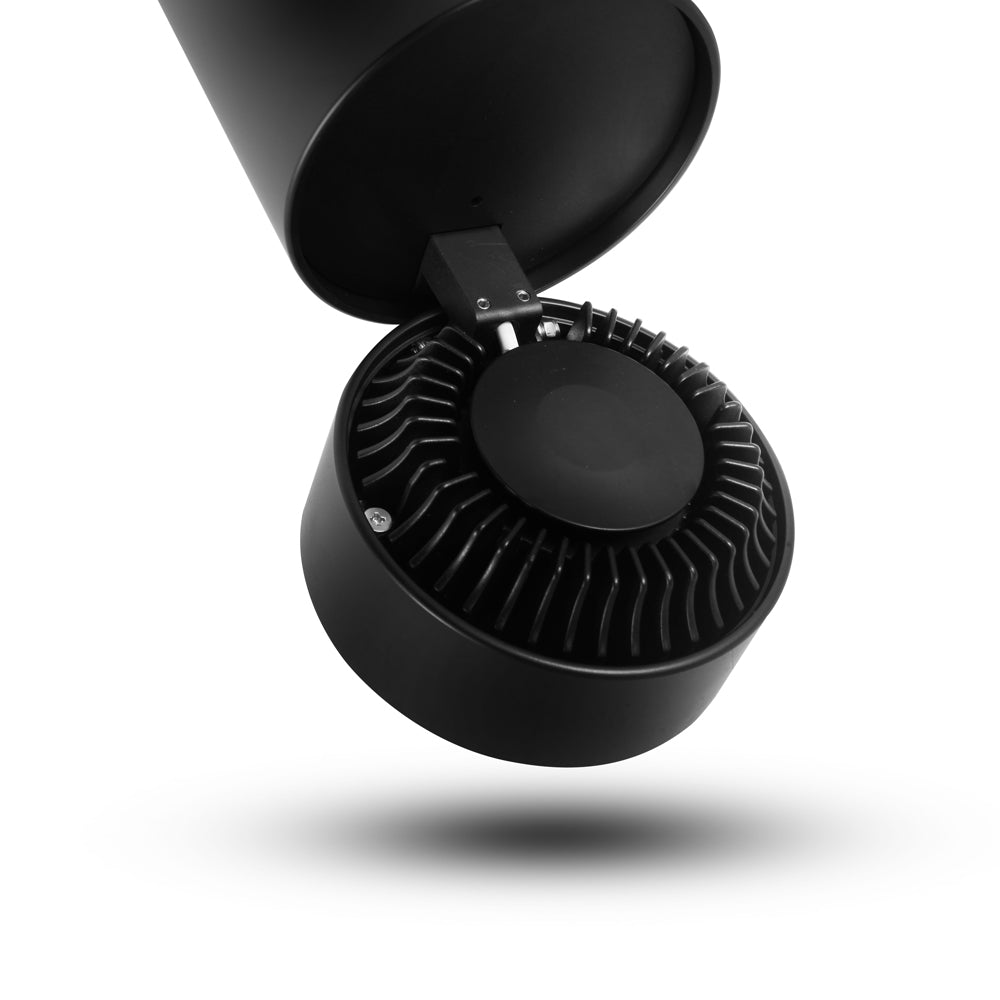

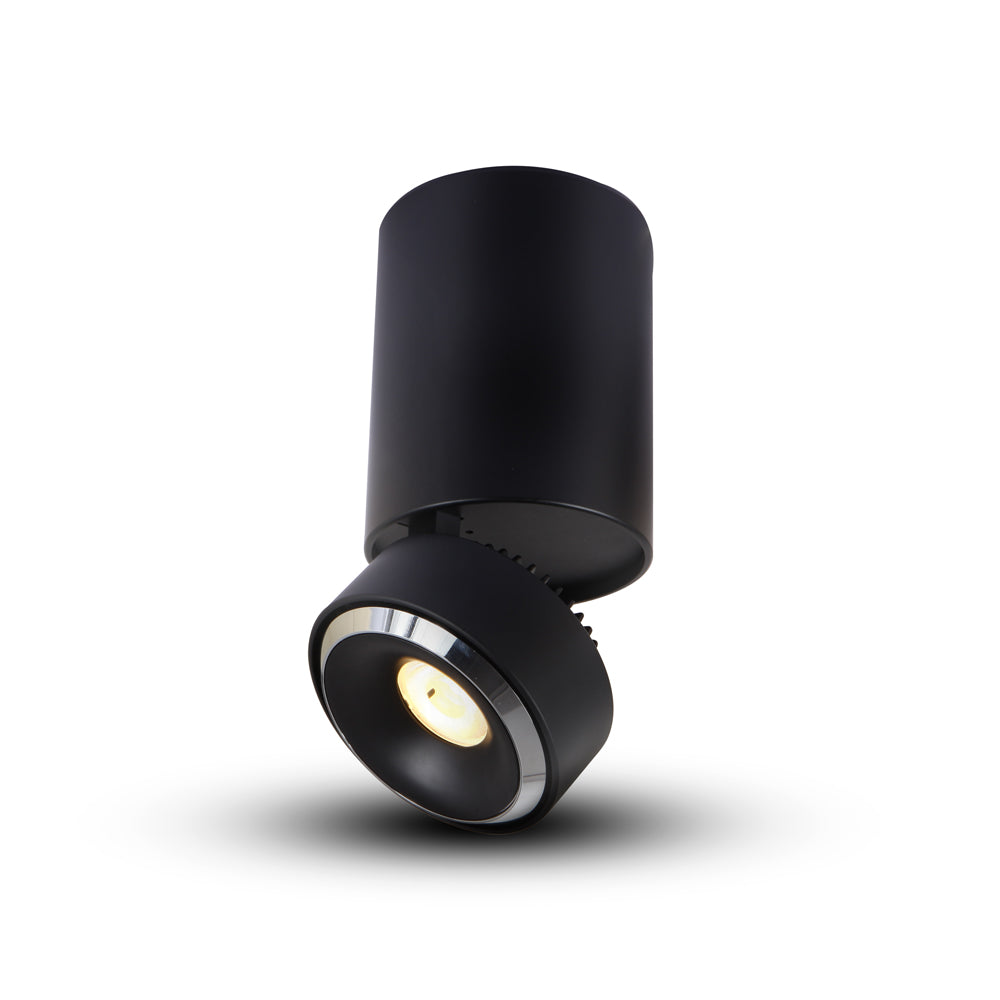

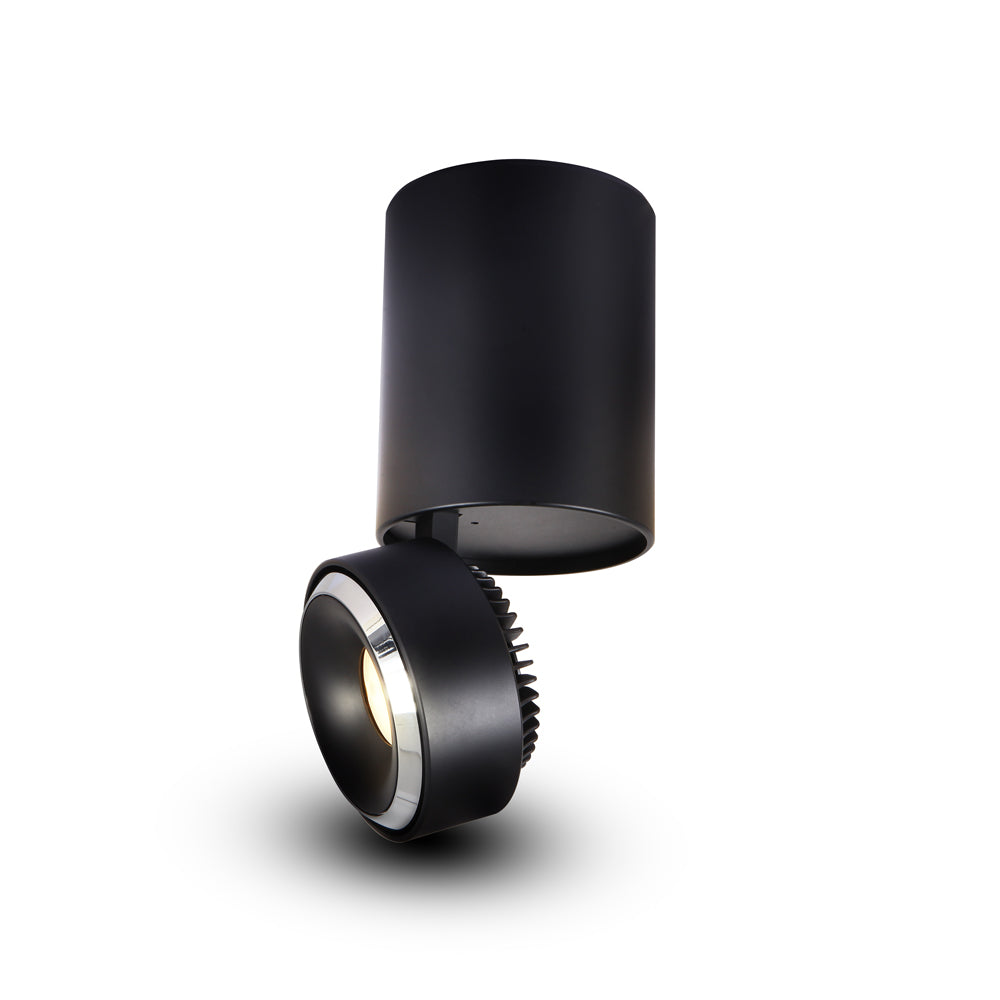

• Adjusts 350° left - right, adjusts 90° up - down
• OVERALL DIMENSIONS: 4.25" Diameter x 7.75"H
• CANOPY DIMENSIONS: 4.25" Diameter x 5.5"H
• LIGHT HEAD DIMENSIONS: 4.25" Diameter x 2.25"H
• HOLE SIZE: 0.59" Diameter
• ELECTRICAL BOX DIMENSIONS (for included remote driver): 8.46"L x 1.77"W x 1.57"H
• LENS BEAM ANGLE: offered in 3 beam angles 12° & 24°(special order required), 36°(stock beam angle)
• STOCK BEAM ANGLE: 36°
• DIMMABLE: Dimming 0-10V
• CCT: 3000 Kelvin color temperature
• BRIGHTNESS: 1877.85 Lumens
• WATTAGE: 20W
• VOLTAGE: 100-277V
• CRI 90: is the highest measurement of light about the accuracy of color appearance
• IP Rate: IP20 (dry rated)
• ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 3 Year Limited Warranty
***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4"***

Installation Guide Download
Specification Sheets Download
Line Drawing Download
IES Photometric File Download
IES Photometric File (IES) Download


UPC / GTIN

850003683911

Voltage (V)

100-277V

More Ways To Shop

SalePromo

Availability

Stock Item

Style

Modern

Application

Commercial

Product Type

Downlight Surface Mount

Hole Size (in)

0.59" Diameter

Dimming

0-10V

Dimmable

Yes

Driver

YG

IP Rate

IP20

CRI

90

Color Temperature

3000K

Power (W)

20W

Series

ORBIT

Luminous Flux (delivered) (Lm)

1877.85

Materials

Aluminum, Iron, PC

Product Height

7 to 8 inches

Product Width

4 to 5 inches

Product Length

4 to 5 inches

Product Dimensions (in)

4.33" Dia x 7.87"H

Adjustable

Y

Finish

Black

Lense Beam Angle

12 24 36

Room

BedroomDining RoomFoyerHallwayKitchenLiving Room
