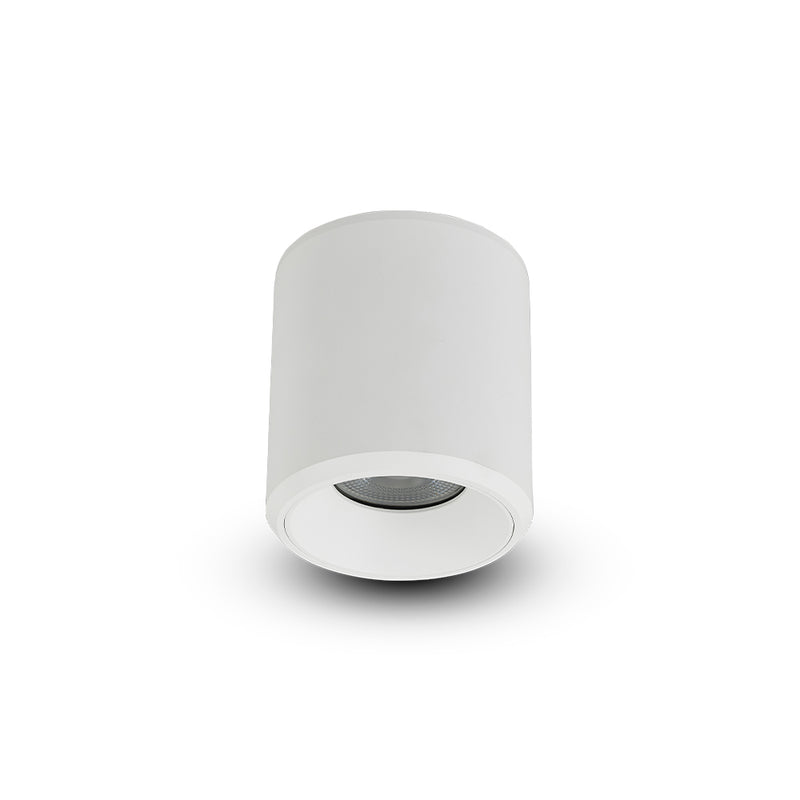

VONN NODE 3.5" Cylinder LED Surface-Mount Downlight in White | VMCL001901A012WH

SKU: VMCL001901A012WH   VONN Lighting

$119.95 $199.95
Split your purchase into easy payments at checkout.

36 In Stock.  Ships In 24-48 Hours

EnabLED - Licensing Program for LED Luminaires and Retrofit Bulbs

3.5" Round LED Surface Mounted Downlight VMCL001901A012WH, Beam Angle 33, White

The VONN NODE 3.5" Round LED Surface-Mount Downlight combines a compact cylindrical silhouette with focused architectural illumination for modern residential and commercial interiors. Finished in crisp White, its clean surface-mounted profile provides the refined appearance of an architectural downlight without requiring a traditional recessed housing.

Designed for controlled, functional illumination, the NODE features a 33° stock beam angle, making it an excellent choice for kitchens, hallways, living spaces, offices, retail environments, restaurants, hospitality spaces, and other interiors where focused downward lighting is desired. Its compact cylinder design integrates naturally into contemporary spaces while maintaining a clean, minimalist ceiling appearance.

The integrated LED system delivers 866 lumens of warm 3000K illumination with 90 CRI while consuming just 12 watts. The downlight is compatible with 0–10V dimming and operates on 100–277V, providing versatile performance for residential and professional commercial lighting applications.

With its compact cylindrical profile, focused 33° beam, crisp White finish, integrated LED technology, and 0–10V dimming, the VONN NODE delivers a refined balance of minimalist architectural design, efficient illumination, and professional-grade versatility.

Installation Guide Download
Specification Sheets Download
Line Drawing Download
IES Photometric File Download
IES Photometric File (IES) Download

LED Surface mounted downlight, NODE Series
• Aluminum body structure available in 2 finishes Black and White

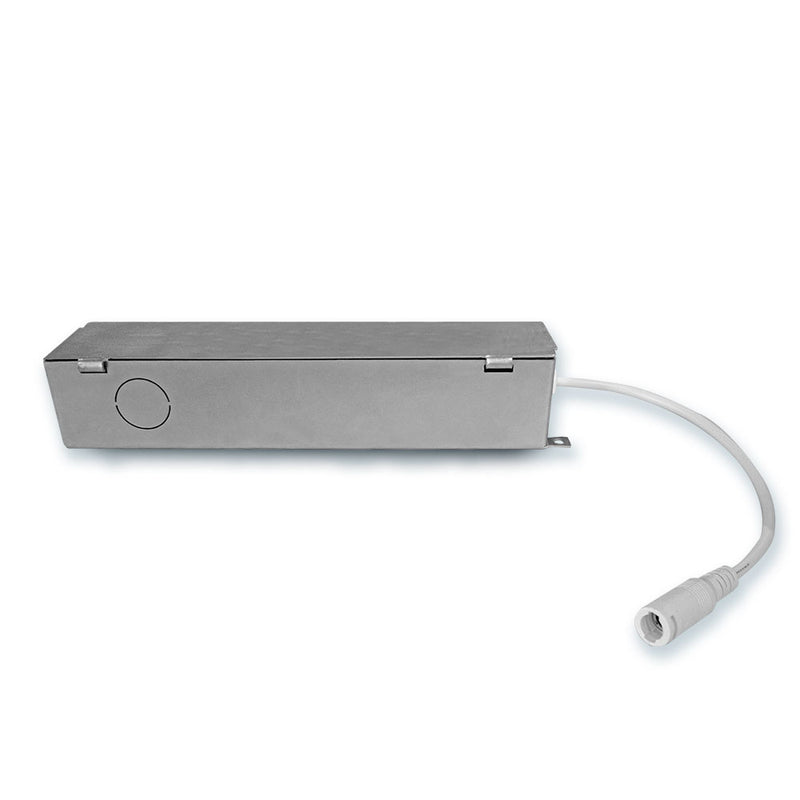

• Integrated LED fixture, surface mounted with remote driver (included)
• IC Rated
• DIMENSIONS: 3.5" Diameter x 4"H
• HOLE SIZE: 0.59" Diameter
• ELECTRICAL BOX DIMENSIONS (for included remote driver): 8.46"L x 1.77"W x 1.57"H

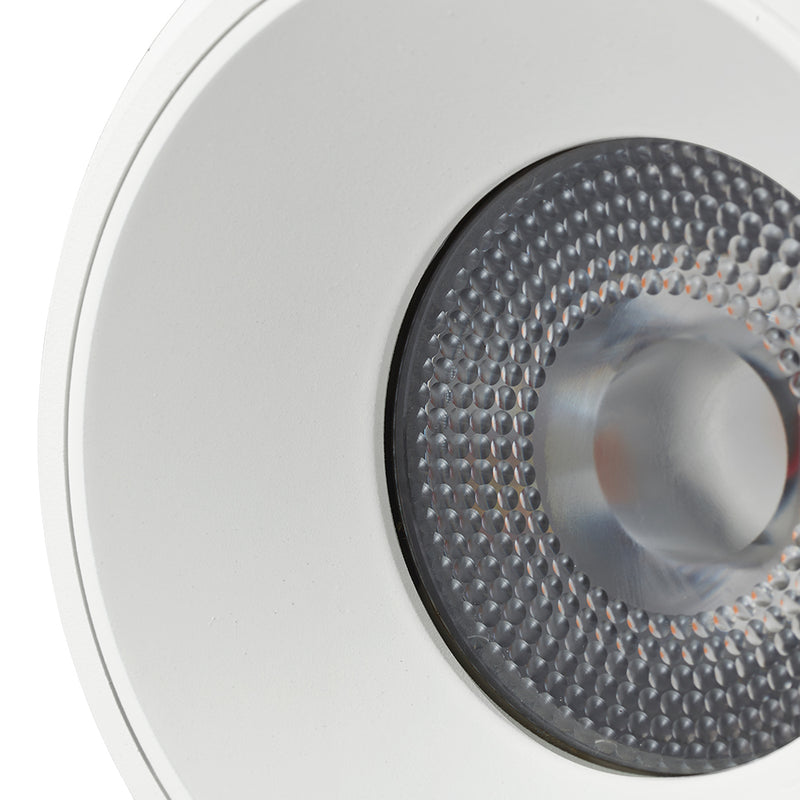

• LENS BEAM ANGLE: offered in 4 beam angles 14°, 19° & 40°(special order required), 33°(stock beam angle)
• STOCK BEAM ANGLE: 33°
• DIMMABLE: Dimming 0-10V
• CCT: 3000 Kelvin color temperature
• BRIGHTNESS: 865.76 Lumens
• WATTAGE: 12W
• VOLTAGE: 100-277V
• CRI 90: is the highest measurement of light about the accuracy of color appearance
• IP Rate: IP20 (dry rated)
• ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 3 Year Limited Warranty
***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4"***

Installation Guide Download
Specification Sheets Download
Line Drawing Download
IES Photometric File Download
IES Photometric File (IES) Download

Additional information

UPC / GTIN

850003683980

Series

NODE

Product Weight (lbs.)

2.20

Lense Beam Angle

14, 19, 33, 40

Hole Size (in)

0.59"

Hole Size (mm)

?15

Dimming

0-10V

Dimmable

Y

Driver

YG

Adjustable

N

IP Rate

IP20

Color Temperature

3000K

CRI

90

Voltage (V)

100-277V

Power (W)

12

Luminous Flux (delivered) (Lm)

865.76

Materials

Aluminum, Iron, PMMA

Product Dimensions (in)

3.54" Dia x 3.93" H

Product Type

Downlight

Beam Angle

33
