VONN NODE VMCL001901C020WH 4.25" 1 LIGHT ROUND 100-277V LED SURFACE MOUNTED DOWNLIGHT, ETL CERT, COMMERCIAL GRADE, White

SKU: VMCL001901C020WH   VONN Lighting

EnabLED - Licensing Program for LED Luminaires and Retrofit Bulbs
$229.95

56 In Stock.

QUICK SHIP!  Ship In 24-48 Hours

4.25" Round LED Surface Mounted Downlight VMCL001901C020WH, Stock Item Beam Angle 33, White



Installation Guide Download
Specification Sheets Download
Line Drawing Download
IES Photometric File Download
IES Photometric File (IES) Download

LED Surface mounted downlight, NODE Series
• Aluminum body structure available in 2 finishes Black and White
• Integrated LED fixture, surface mounted with remote driver (included)
• IC Rated
• DIMENSIONS: 4.25" Diameter x 4.75"H
• HOLE SIZE: 0.59" Diameter

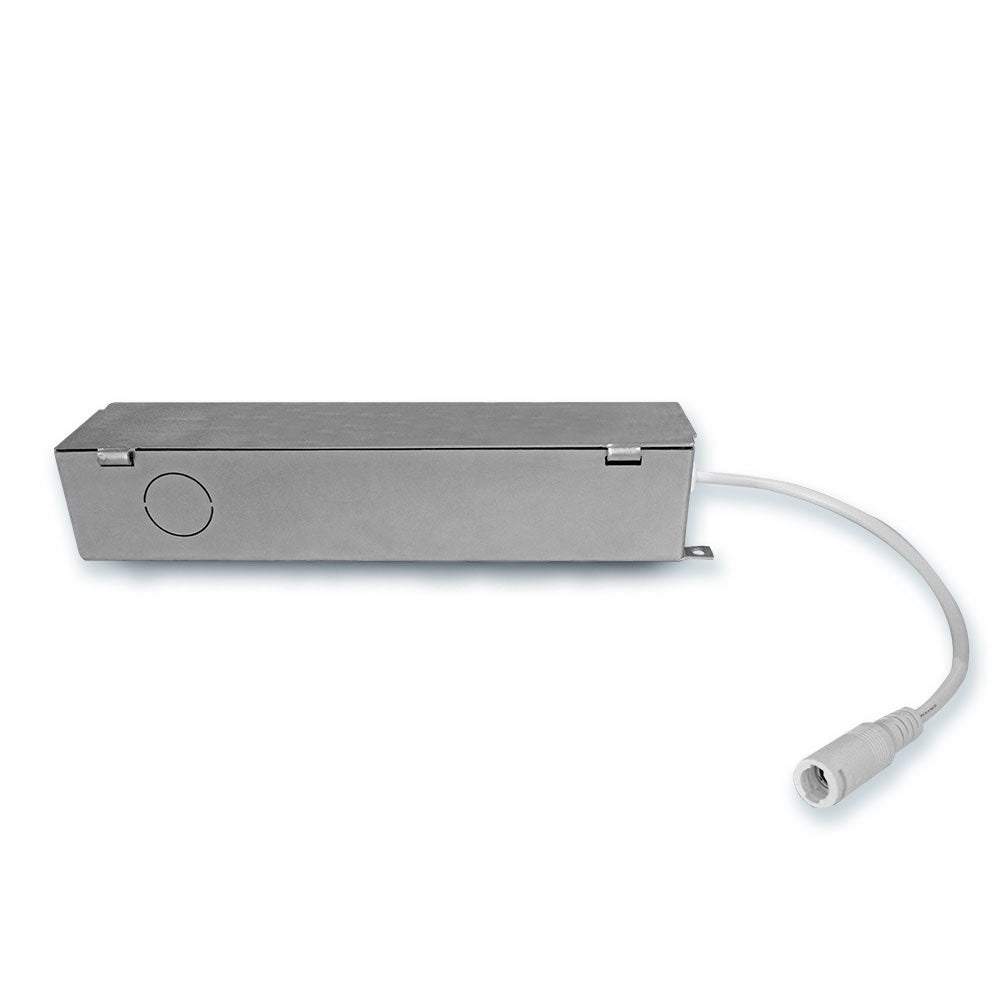

• ELECTRICAL BOX DIMENSIONS (for included remote driver): 8.46"L x 1.77"W x 1.57"H
• LENS BEAM ANGLE: offered in 3 beam angles 15° & 22°(special order required), 33°(stock beam angle)
• STOCK BEAM ANGLE: 33°
• DIMMABLE: Dimming 0-10V
• CCT: 3000 Kelvin color temperature
• BRIGHTNESS: 1746.94 Lumens
• WATTAGE: 20W
• VOLTAGE: 100-277V
• CRI 90: is the highest measurement of light about the accuracy of color appearance
• IP Rate: IP20 (dry rated)
• ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 3 Year Limited Warranty
***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4"***

Installation Guide Download
Specification Sheets Download
Line Drawing Download
IES Photometric File Download
IES Photometric File (IES) Download


UPC / GTIN

850021980023

Color Temperature

3000K

More Ways To Shop

SalePromo

Availability

Stock Item

Style

Modern

Application

Commercial

Product Type

Downlight Surface Mount

Hole Size (in)

0.59" Dia

Dimming

0-10V

Dimmable

Yes

Driver

YG

IP Rate

IP20

CRI

90

Voltage (V)

100-277V

Series

NODE

Power (W)

20W

Luminous Flux (delivered) (Lm)

1746.94

Materials

Aluminum, Iron, PMMA

Product Height

4 to 5 inches

Product Width

4 to 5 inches

Product Length

4 to 5 inches

Product Dimensions (in)

4.33" Dia x 4.72"H

Adjustable

N

Finish

White

Lense Beam Angle

15 22 33

Room

BedroomDining RoomFoyerHallwayKitchenLiving Room
