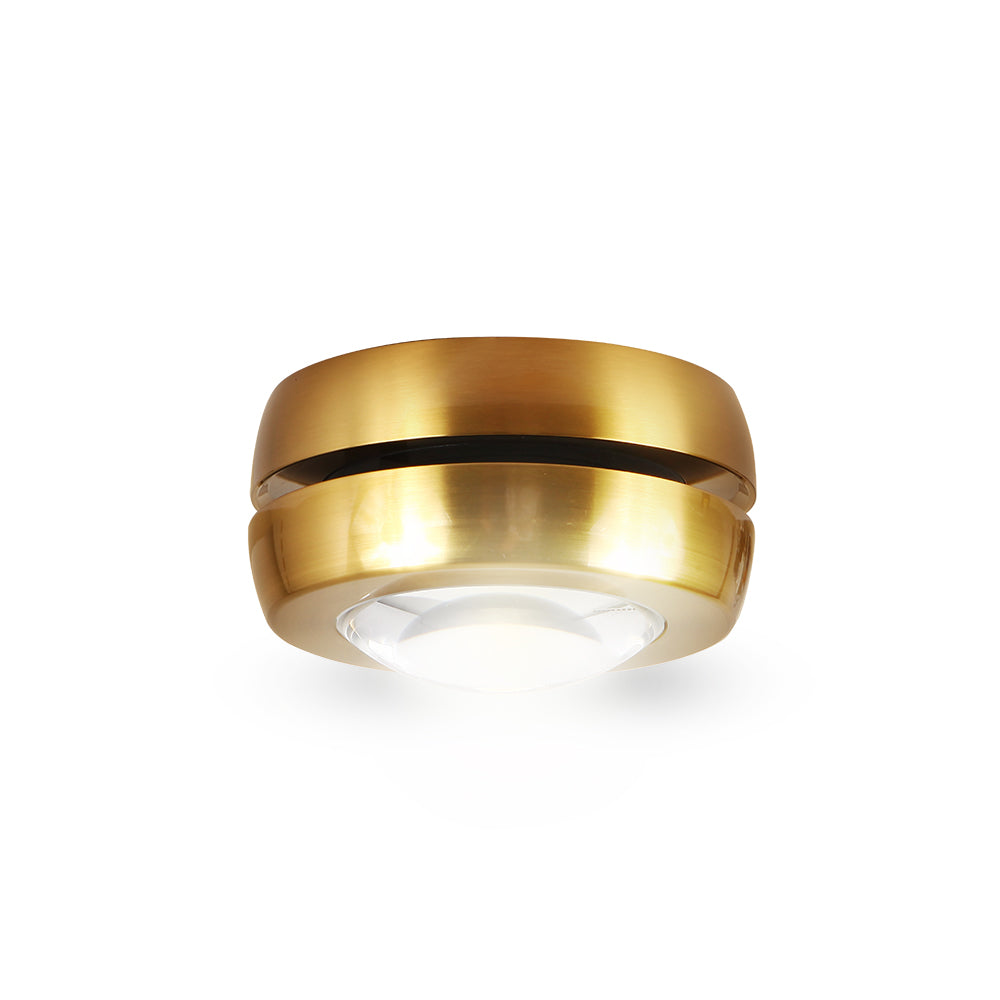

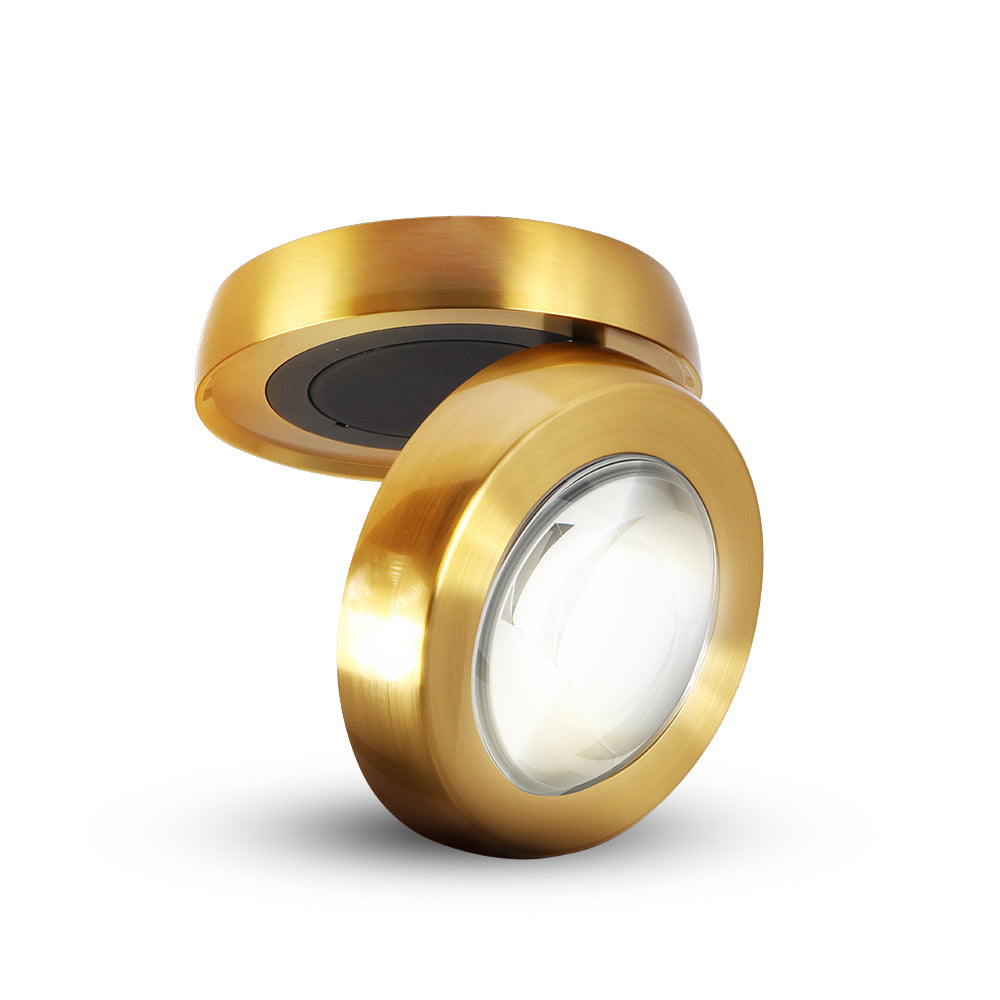

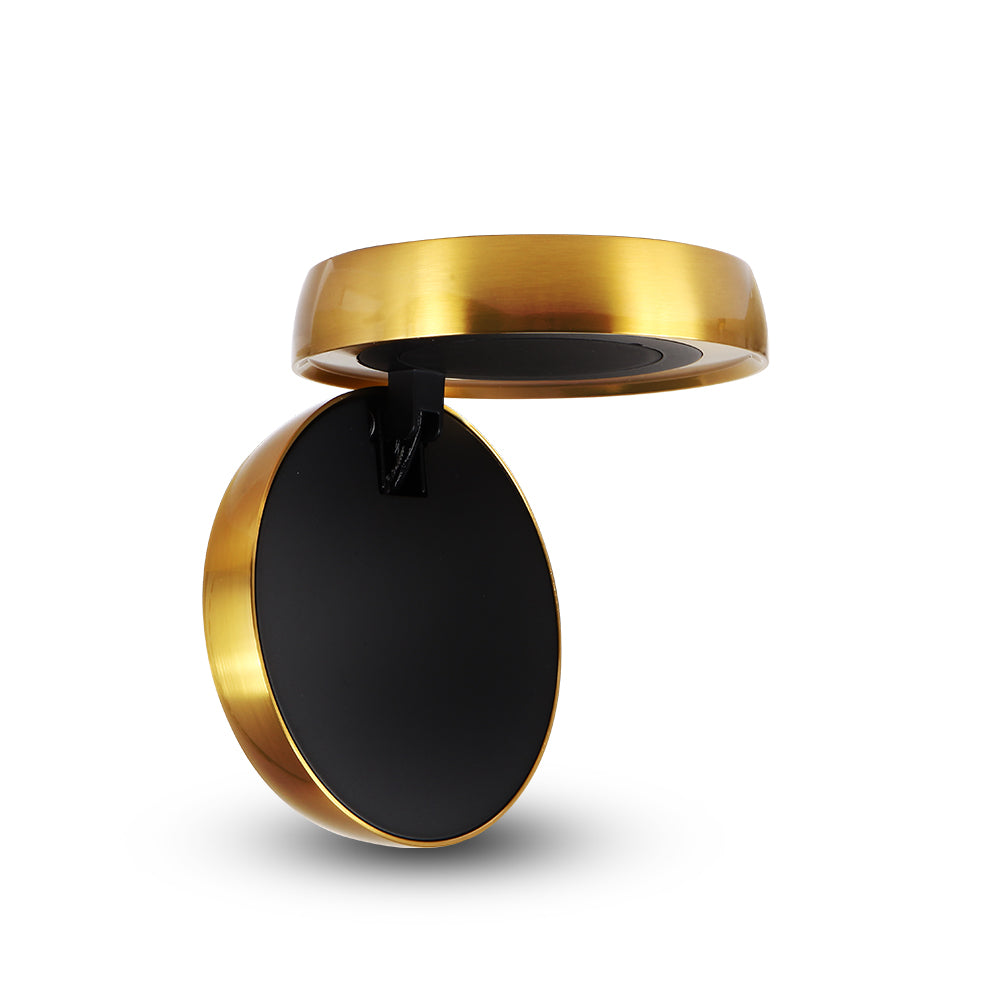

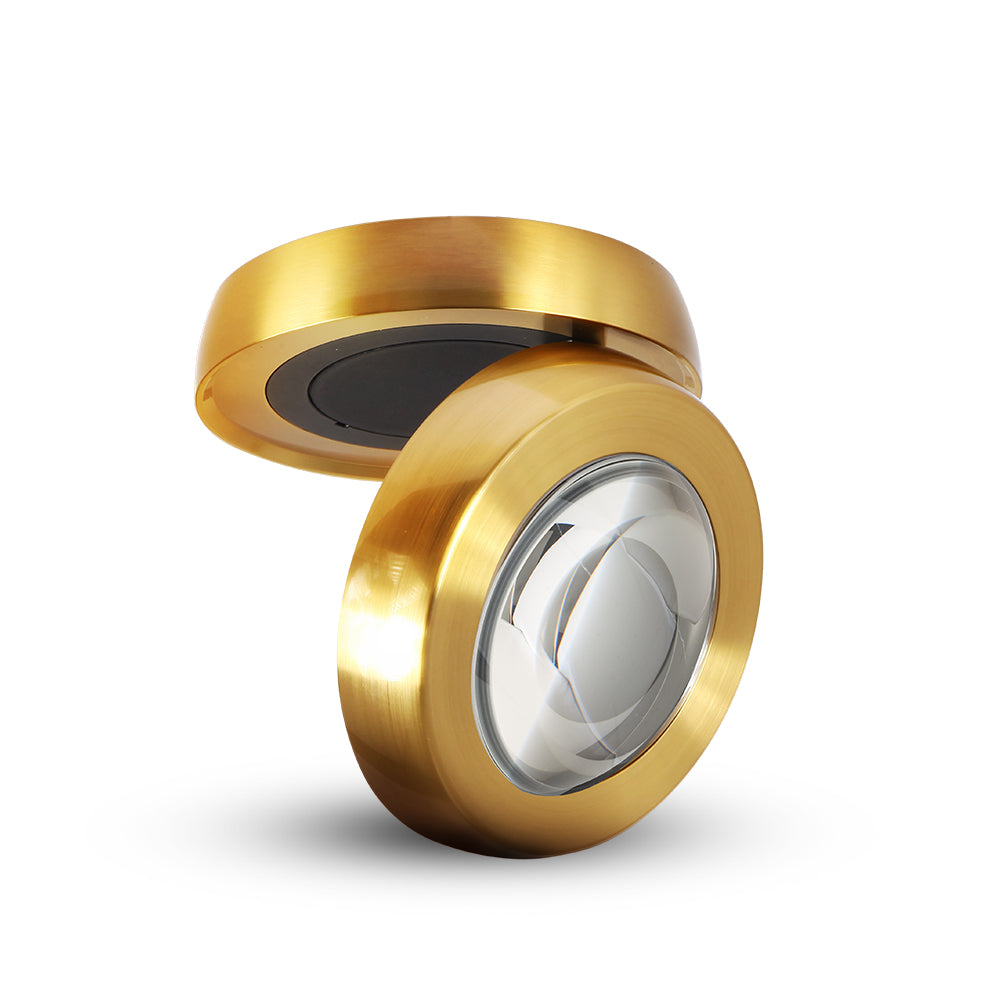

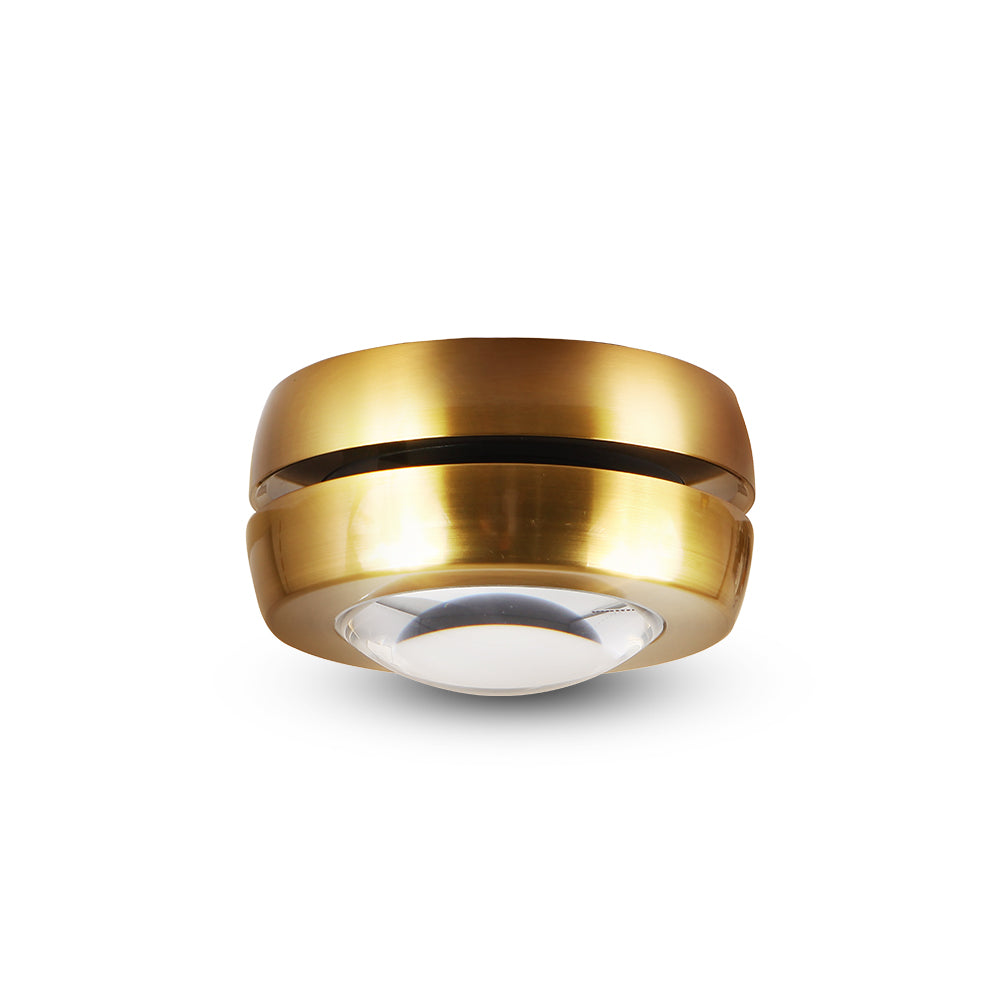

VONN ORBIT VMCL004701A008AB 5.25" 1 LIGHT LED ADJUSTABLE WALL+CEILING MOUNT ETL CERT COMMERCIAL GRADE, Antique Brass

SKU: VMCL004701A008AB   VONN Lighting

EnabLED - Licensing Program for LED Luminaires and Retrofit Bulbs
$289.95


Available on Backorder. Ship Date: 3/15/2025

LED Adjustable Wall +Ceiling Mount VMCL004701A008AB, Antique Brass

Installation Guide Download
Specification Sheets Download
Line Drawing Download
IES Photometric File Download
IES Photometric File (IES) Download

LED Adjustable wall + ceiling downlight, ORBIT Series
• Aluminum body structure available in 2 finishes Chrome and Antique Brass
• Integrated AC LED fixture (120VAC - no driver needed), surface mounted
• EASY INSTALLATION: plug and play with very little additional wiring
• IC Rated
• Adjusts 350° left - right, adjusts 90° up - down
• OVERALL DIMENSIONS: 5.25" Diameter x 3"H, adjustable to 6.5" H
• BACKPLATE DIMENSIONS: 4.75" Diameter x 0.5"H
• LIGHT HEAD DIMENSIONS: 5.25" Diameter x 1.75"H
• HOLE SIZE:  3.6"L x 1.7"W, minimum plenum space 0.25"H
• ELECTRICAL BOX DIMENSIONS (supplied with the purchase for constructions that requires the electrical box): 4.33"L x 3.43"W x 1.34"H
• LENS BEAM ANGLE: 85°
• DIMMABLE: ELV dimming
• CCT: 3000 Kelvin color temperature
• BRIGHTNESS: 312.96 Lumens
• WATTAGE: 8W
• VOLTAGE: 120V
• CRI 90: is the highest measurement of light about the accuracy of color appearance
• IP Rate: IP20 (dry rated)
• ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 3 Year Limited Warranty
***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4"***

Installation Guide Download
Specification Sheets Download
Line Drawing Download
IES Photometric File Download
IES Photometric File (IES) Download


UPC / GTIN

850003683737

Color Temperature

3000K

More Ways To Shop

SalePromo

Availability

Stock Item

Style

Modern

Application

Commercial

Product Type

Downlight Surface Mount

Dimming

ELV

Dimmable

Yes

Driver

AC LED

IP Rate

IP20

CRI

90

Luminous Flux (delivered) (Lm)

312.96

Power (W)

8W

Voltage (V)

120V

Materials

Aluminum, Iron, PMMA

Series

ORBIT

Product Height

3 to 4 inches

Product Width

5 to 6 inches

Product Length

5 to 6 inches

Product Dimensions (in)

5.28" Dia x 3"H

Adjustable

Y

Finish

Chrome

Lense Beam Angle

85

Room

BedroomDining RoomFoyerHallwayKitchenLiving Room
