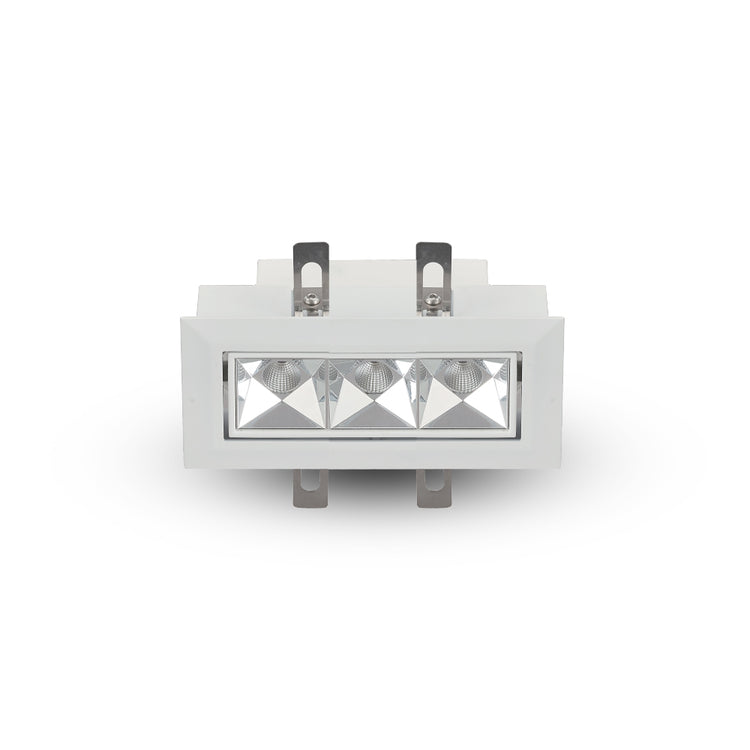

VONN Rubik 5" 3-Light Adjustable LED Recessed Downlight in White | VMDL000603C009WH

SKU: VMDL000603C009WH   VONN Lighting

$109.95 $179.95
Split your purchase into easy payments at checkout.

171 In Stock.  Ships In 24-48 Hours

EnabLED - Licensing Program for LED Luminaires and Retrofit Bulbs

3 Lights LED Adjustable Recessed Downlight with Trim VMDL000603C009WH, Beam Angle 34, White

The VONN RUBIK 5" 3-Light Adjustable LED Recessed Downlight combines precise directional illumination with a compact architectural profile. Featuring three integrated LED light sources within a clean rectangular White finish, RUBIK creates a sophisticated alternative to traditional round recessed lighting for modern residential and commercial interiors.

Designed for greater control over light placement, the three-light configuration offers 15° directional adjustment to the left or right, allowing illumination to be focused toward countertops, artwork, displays, architectural details, or other areas that require more precise lighting. The standard 34° beam angle provides focused illumination while maintaining enough spread for versatile everyday applications.

Its recessed installation keeps the fixture visually integrated into the ceiling, while the included remote driver and IC-rated construction provide additional installation flexibility. The fixture is compatible with 0–10V dimming and operates on 100–277V, making it an excellent choice for kitchens, hallways, offices, retail environments, hospitality spaces, and sophisticated commercial interiors.

With its three-light configuration, directional adjustability, focused beam, slim rectangular profile, White finish, and integrated LED technology, the VONN RUBIK delivers a refined balance of architectural design, precise illumination, and professional-grade versatility.

Explore the complete Rubik lineup to find the perfect fit for your layout: 1-cell VMDL000601A003WH, 5-cell VMDL000605C012WH or 10-cell VMDL000610C024WH

Installation Guide Download
Specification Sheets Download
Line Drawing Download
IES Photometric File Download
IES Photometric File (IES) Download

LED Adjustable trim downlight, RUBIK Series
• Aluminum body structure available in White finish
• Integrated LED 3-spot fixture, recessed installation with remote driver (included)
• IC Rated
• Adjustable 15° to the left or right
• DIMENSIONS: 5"L x 2.5"W x 2.25"H
• HOLE SIZE: 4.75"L x 2.25"W
• ELECTRICAL BOX DIMENSIONS (for included remote driver): 8.46"L x 1.77"W x 1.57"H
• LENS BEAM ANGLE: offered in 4 beam angles 12°, 20° &  48°(special order required), 34°(stock beam angle)
• STOCK BEAM ANGLE: 34°
• DIMMABLE: 0-10V
• CCT: 3000 Kelvin color temperature
• BRIGHTNESS: 576.06 Lumens
• WATTAGE: 8.6W
• VOLTAGE: 100-277V
• CRI 90: is the highest measurement of light about the accuracy of color appearance
• IP Rate: IP20 (dry rated)
• ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 3 Year Limited Warranty
***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4"***

Installation Guide Download
Specification Sheets Download
Line Drawing Download
IES Photometric File Download
IES Photometric File (IES) Download


UPC / GTIN

850003683867

CRI

90

More Ways To Shop

SalePromo

Availability

Stock Item

Style

Modern

Application

Commercial

Product Type

Downlight Recessed

Hole Size (in)

4.75"L x 2.25"W

Dimming

0-10V

Dimmable

Yes

Driver

YG

IP Rate

IP20

Power (W)

8.6W

Voltage (V)

100-277V

Color Temperature

3000K

Luminous Flux (delivered) (Lm)

576.06

Series

RUBIK

Materials

Aluminum, Iron, PMMA

Product Height

2 to 3 inches

Product Width

2 to 3 inches

Product Length

5 to 6 inches

Product Dimensions (in)

4.92"L x 2.56"W x 2.16"H

Finish

White

Lense Beam Angle

12 20 34 48

Room

BedroomDining RoomFoyerHallwayKitchenLiving Room
