ORBIT LED Flush Mounted Adjustable Downlight VMDL000701A020WH, White

SKU: VMDL000701A020WH   VONN Lighting

$157.47 $224.95

64 In Stock.

QUICK SHIP!  Ship In 24-48 Hours

LED Flush Mounted Adjustable Downlight VMDL000701A020WH, Stock Item Beam Angle 36, White

Installation Guide Download
Specification Sheets Download
Line Drawing Download
IES Photometric File Download
IES Photometric File (IES) Download

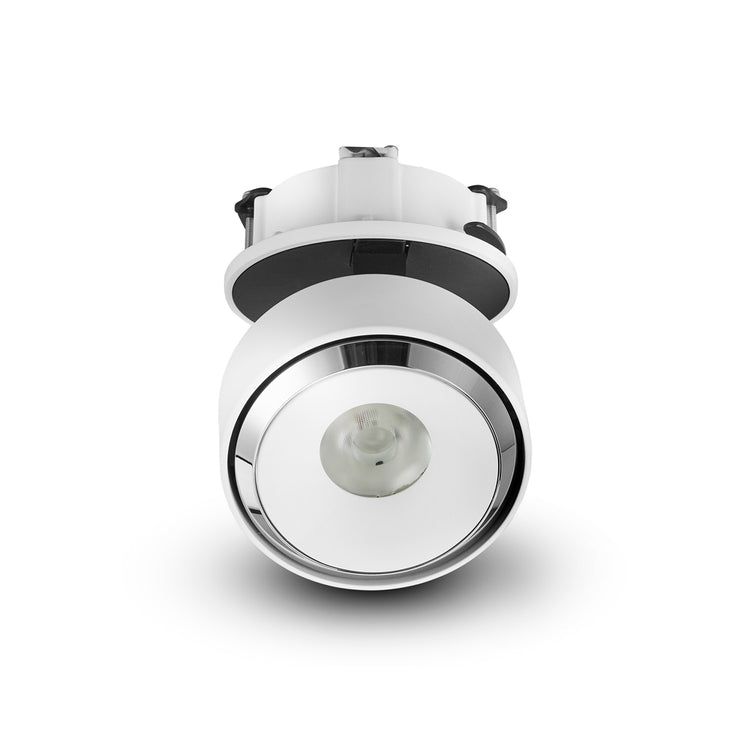

LED Flush mounted adjustable downlight, ORBIT Series

• Aluminum body structure available in 2 finishes Black and White
• Integrated LED fixture, recessed installation
• IC Rated
• Adjusts 350° left - right, adjusts 90° up - down
• OVERALL DIMENSIONS: 4.25" Diameter x 4.25"H
• BACKPLATE DIMENSIONS: 4.25" Diameter x 2"H
• LIGHT HEAD DIMENSIONS: 4.25" Diameter x 2.25"H
• HOLE SIZE: 4" Diameter
• LENS BEAM ANGLE: offered in 3 beam angles 12° & 24°(special order required), 36°(stock beam angle)
• STOCK BEAM ANGLE: 36°
• DIMMABLE: Dimming 0-10V
• CCT: 3000 Kelvin color temperature
• BRIGHTNESS: 1852.05 Lumens
• WATTAGE: 20W
• VOLTAGE: 100-277V
• CRI 90
• IP Rate: IP20
• ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 3 Year Limited Warranty

***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4"***

Installation Guide Download
Specification Sheets Download
Line Drawing Download
IES Photometric File Download
IES Photometric File (IES) Download


UPC / GTIN

850003683942

Color Temperature

3000K

More Ways To Shop

SalePromo

Availability

Stock Item

Style

Modern

Application

Commercial

Product Type

Downlight Recessed

Hole Size (in)

4" Dia

Dimming

0-10V

Dimmable

Yes

Driver

YG

IP Rate

IP20

CRI

90

Voltage (V)

100-277V

Series

ORBIT

Power (W)

20W

Luminous Flux (delivered) (Lm)

1852.05

Materials

Aluminum, Iron, PC

Product Height

4 to 5 inches

Product Width

4 to 5 inches

Product Length

4 to 5 inches

Product Dimensions (in)

4.33" Dia x 4.25"H

Adjustable

Y

Finish

White

Lense Beam Angle

12 24 36

Room

BedroomDining RoomFoyerHallwayKitchenLiving Room
