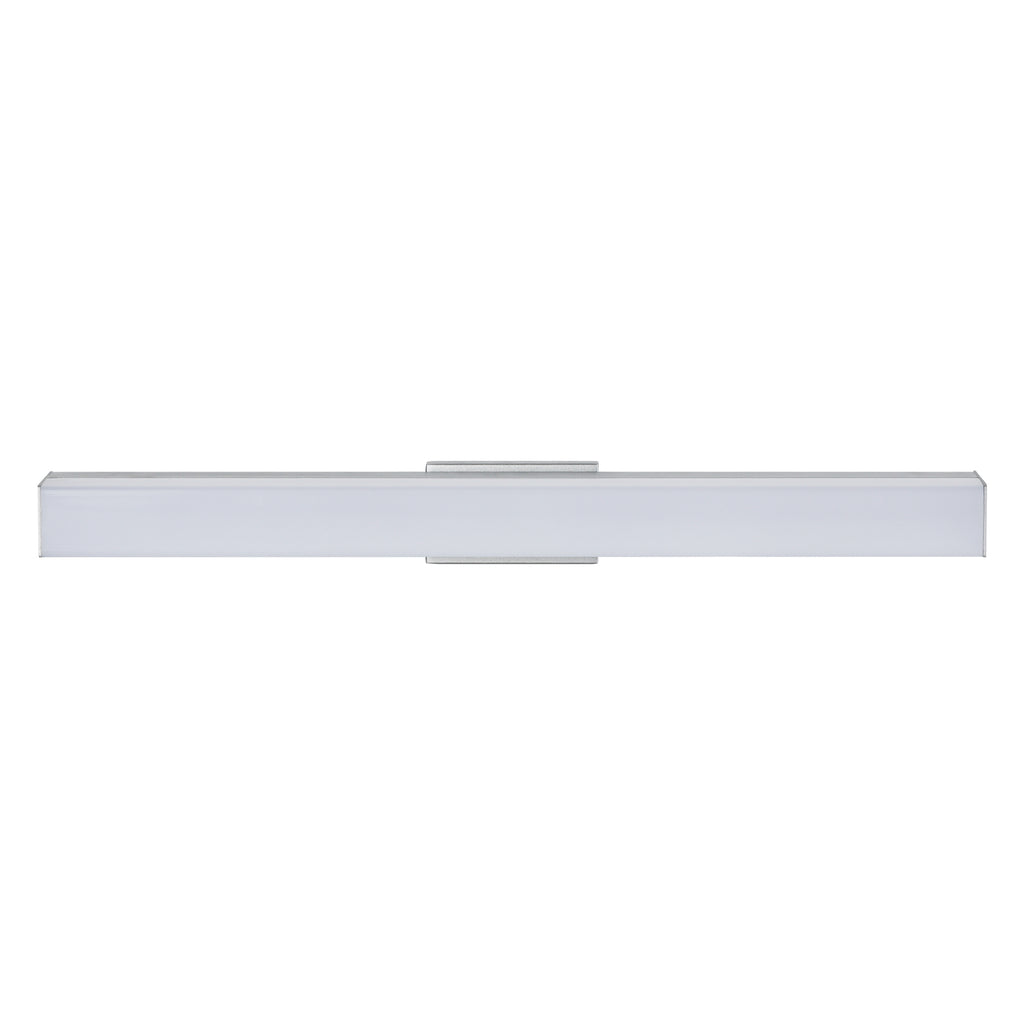

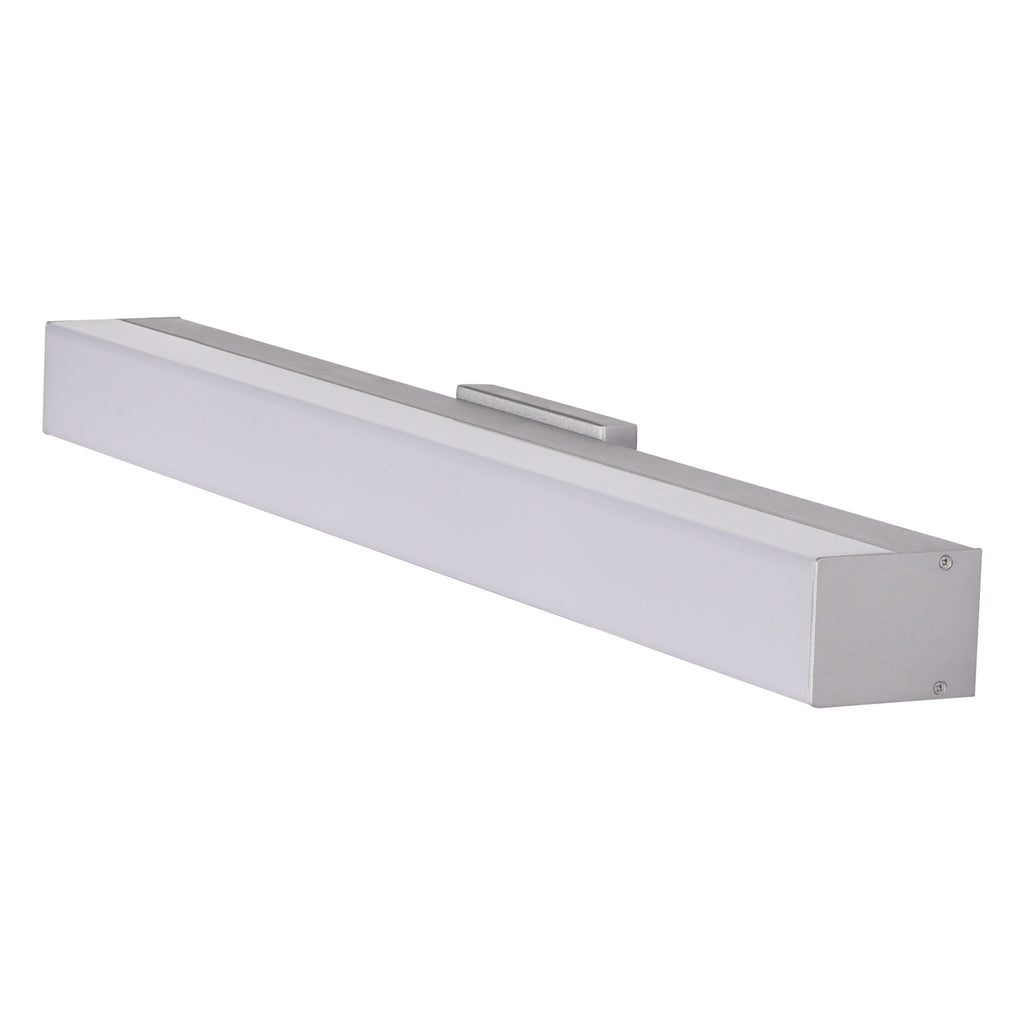

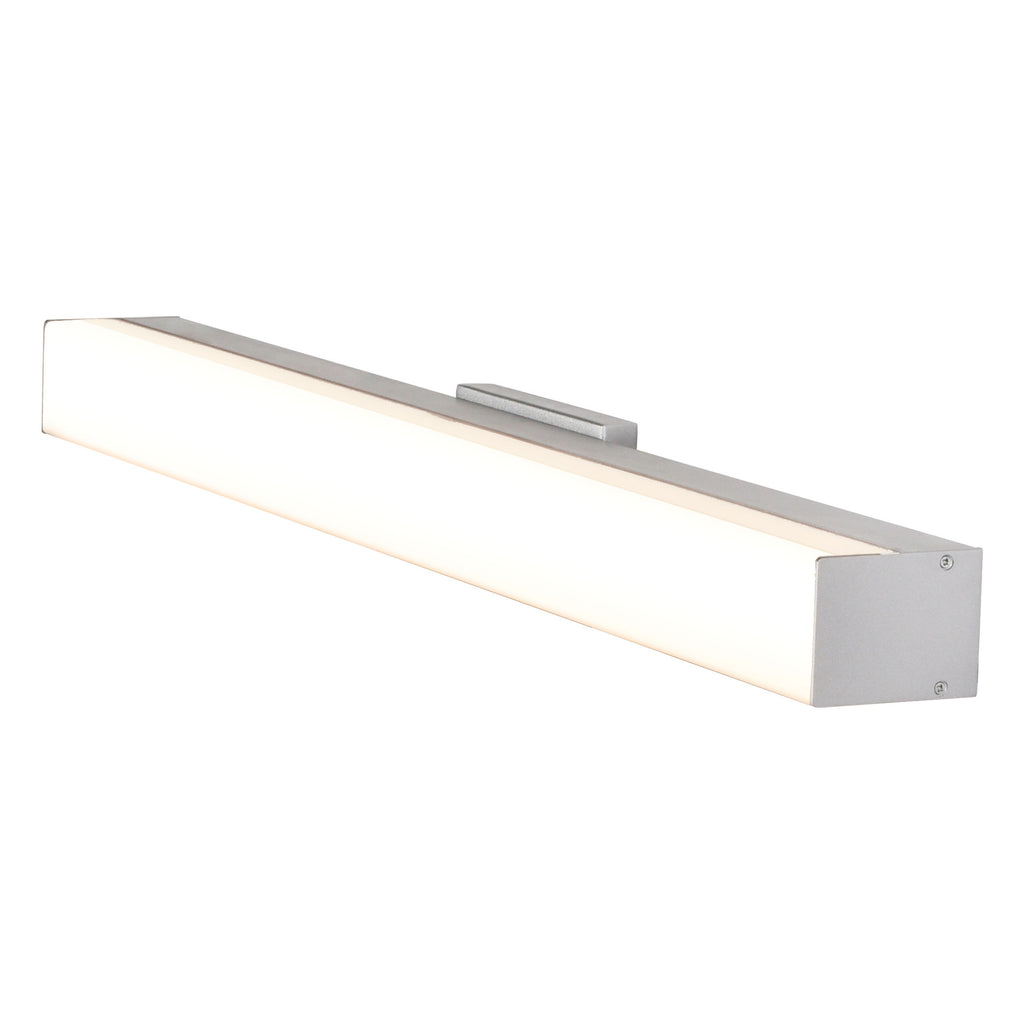

Procyon VMW11700AL 24" Integrated AC LED ADA Compliant Bathroom Wall Lighting Fixture in Silver

SKU: VMW11700AL

$149.96 $199.95

125 In Stock.

QUICK SHIP!  Ship In 24-48 Hours

Purposeful lighting design is decided by compact, defined shapes. The prominent block architecture of the Procyon collection embodies this stance on design, allowing the bathroom to be viewed on the whole, not by its parts. In addition to its sleek and minimalistic design, Procyon AC LED fixture, is also Dimmable, Energy Efficient and ADA compliant.

Specification Sheets Download
Installation Guide Download
IES Photometric File (PDF) Download
IES Photometric File (IES) Download

Product Features:

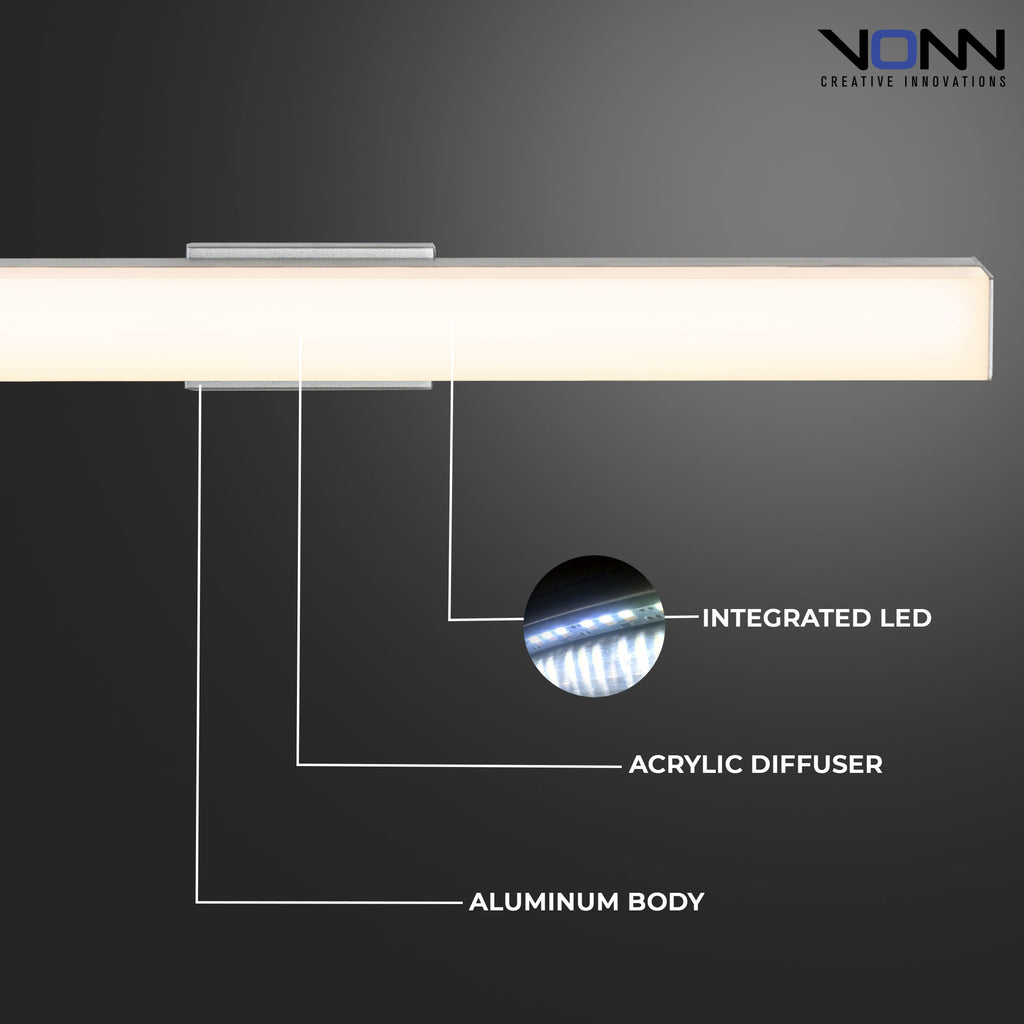

• LED: Integrated AC LED fixture
• DESIGN: Slim profile with brilliant, full bodied glow
• LIGHT DIRECTION: Ambient
• DIMMABLE: Dimmable LED (15% - 100%) with ELV - Electric Low Voltage dimmers (Dimmer is not included with the fixture)
• ONLY compatible with ELV dimmers. Wifi, Smart, and Universal dimmers are NOT compatible
• SOFT WHITE: 3000 Kelvin color temperature
• BRIGHTNESS: 1354 lumens
• EFFICIENCY: 25 watts total consumption
• DAMP LOCATION APPROVED: ETL listed for damp locations
• CRI 90
• VOLTAGE: Operates on standard 120 line voltage
• ETL Certified, cETL, ADA Compliant, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 5 YEAR LIMITED WARRANTY: Fixture and LED system covered under warranty period

Product Specifications:

• PRODUCT DIMENSIONS: 24 inches W x 3 inches D x 2.25 inches H
• SHADE DIMENSIONS: 24 inches W x 2.25 inches D x 1.75 inches H
• BACKPLATE DIMENSIONS: 4.5 inches W x 0.5 inches D x 2.25 inches H
• PRODUCT WEIGHT: 2.3 Lbs.
***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4"***

Specification SheetsDownload
Installation GuideDownload
IES Photometric File (PDF)Download
IES Photometric File (IES)Download


UPC / GTIN

850003683287

Room

Bathroom

Style

Modern

Availability

Stock Item

Product Type

Bathroom Light

Reversible Installation

Yes

Shade Material

Aluminum, Acrylic

Shade Color

White

Shade Height (In.)

1.75

Shade Width (In.)

2.25

Shade Length (In.)

24

Backplate Height (In.)

2.25

Backplate Depth (In.)

0.50

Product Dimensions (LxWxH)

24"L x 3"D x 2.25"H

Color Rendering Index

90

Full Backplate

No

Average Hours

50000

Ship Type

Small Parcel

Number of Boxes

1

Carton Weight (lbs.)

3.4

Carton Height (In.)

4.9

Carton Width (In.)

6.3

Carton Length (In.)

28.3

Carton (L, W, H)

28,6,5

Shade Type

Single

Shade Shape

Rectangular

Backplate Width (In.)

4.50

Materials

AcrylicAluminumIron

Compliances

ADAcETLEnergy Star CompliantETLProp 65 CompliantTitle 20 CompliantTitle 24 Compliant

Finish

Silver

Warranty

5 Years Limited

Install Position

DownwardsUpwards

LIght Direction

Ambient

Product Height

2.25

Product Depth (in.)

3.00

Product Width

24.00

Dimmable

Yes

Shade Description

Acrylic Bar

Series

Procyon

Product Weight (lbs.)

2.3

UL ETL Rated

Damp Location

LED Type

Integrated LED

Color Temperature

3000

Lumens

1354

Total Wattage

25

Voltage (V)

120V

Volume Class

0.51/ 150

Product Dimensions (mm)

W:608*D:75*H:56(24")

Certifications

Title 20 CompliantTitle 24 Complaint

Title 24

Yes
