VONN T-Grid VTG2DRIVER LED Lighting 30W, 100-277V Driver For 2FT Long

SKU: VTG2DRIVER   VONN Lighting

$114.95
Split your purchase into easy payments at checkout.

100 In Stock.  Ships In 24-48 Hours

EnabLED - Licensing Program for LED Luminaires and Retrofit Bulbs

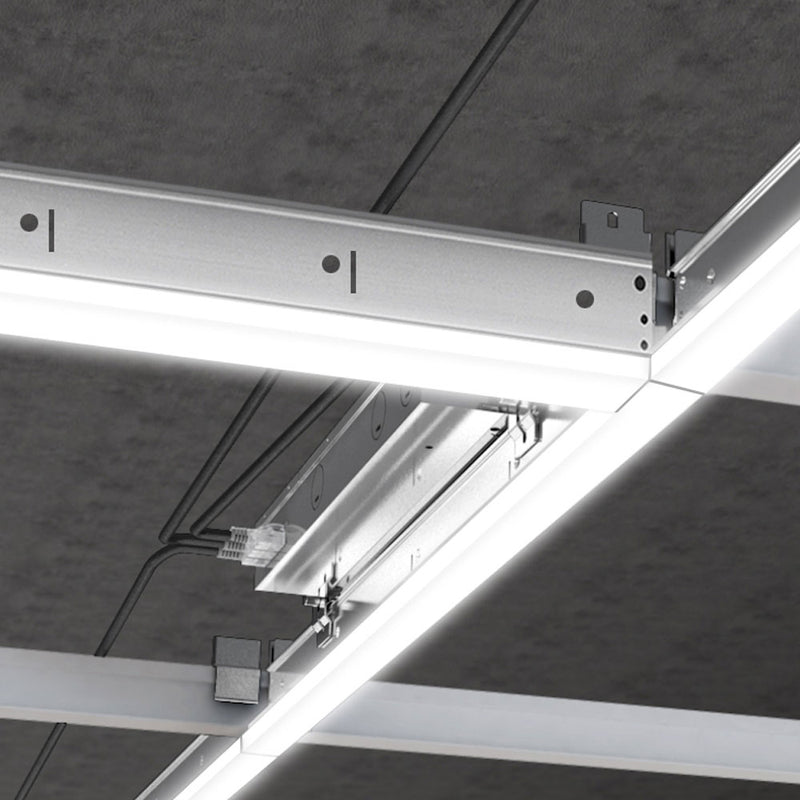

TheĀ VONN VTG2DRIVER is designed exclusively for compatible VONN 2-foot T-Grid lighting fixtures, providing a dedicated power solution for T-Grid lighting installations.

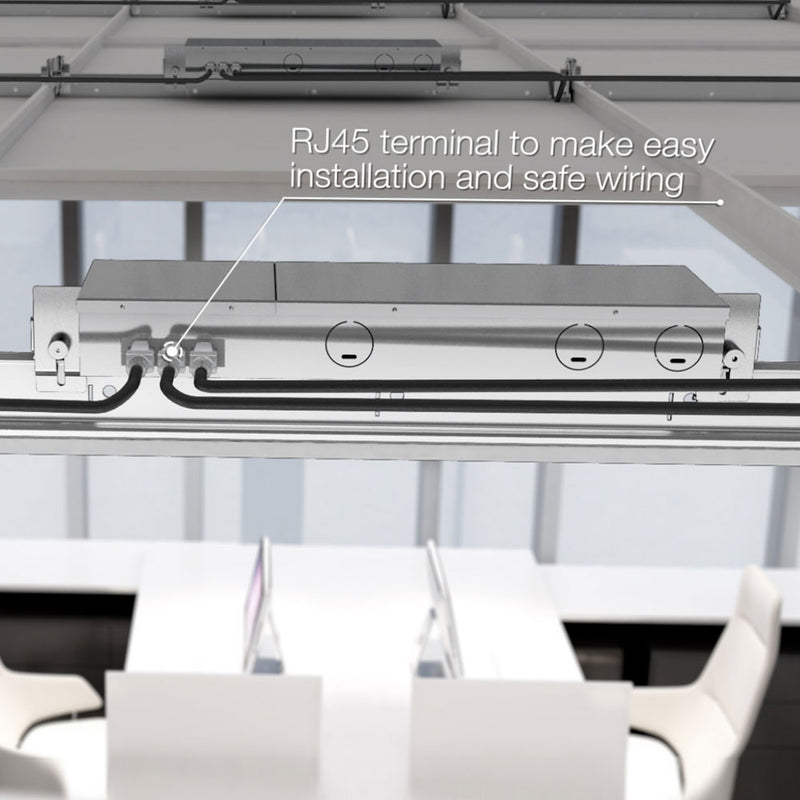

One VTG2DRIVER can support up to three (3) 2-foot T-Grid fixtures when the fixtures are installed within reach of the driver. Each compatible T-Grid fixture includes a 6-foot power cable, so the driver should be positioned near the connected fixtures to ensure all cables can reach the driver without extension.

For installations requiring multiple fixtures, plan for one VTG2DRIVER per three 2-foot T-Grid fixtures. The driver may also be used with one or two compatible fixtures when required by the installation layout.

Important: The VTG2DRIVER is intended only for VONN 2-foot T-Grid fixtures. Proper driver placement should be determined during installation based on the location of the fixtures and the available 6-foot connection cables.

Specification Sheets Download

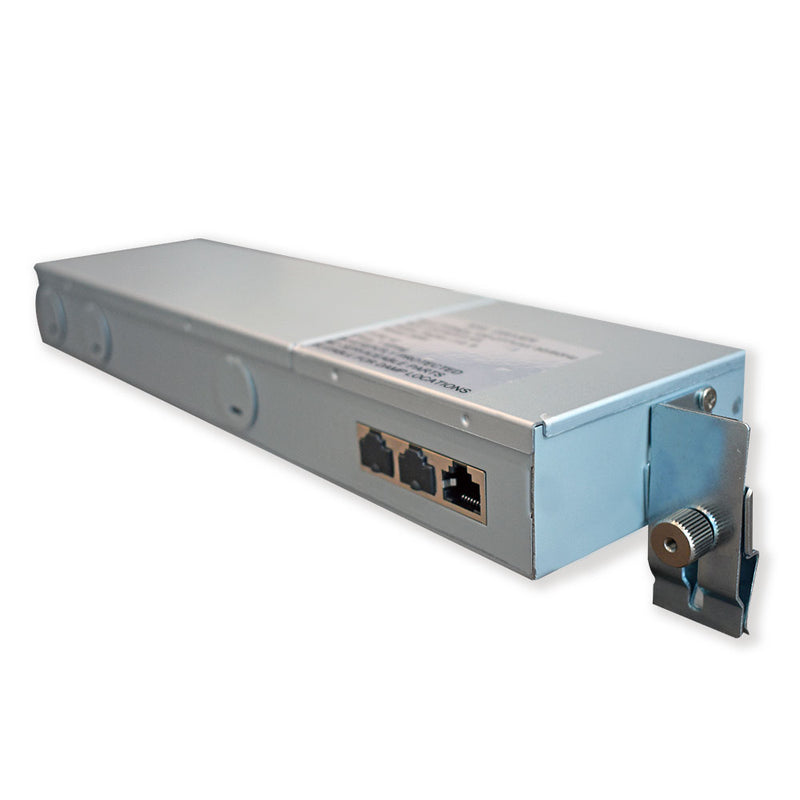

30W 0-10V Driver suitable for VONN VTG2 Series 2-foot T-Grid Linear Lighting.

  • COMPATIBILITY: One driver can support up to three (3) compatible 2-foot T-Grid fixtures.
  • DIMENSIONS: 11.7"L x 3.23"W x 1.48"H
  • DIMMING: Constant Current, 0-10V Dimming
    Dimming Range: 13-100%
    Dimming Current: <1.5mA
    Compatible Dimmers: Lutron DIVA-DVTV, NOVA-NTSTV-TV
  • IP RATING: IP20
  • INPUT:
    Voltage & Frequency: 100-277V AC; 50Hz / 60Hz
    AC Current (Max.): 0.7A at 120V AC
    Power Factor: >0.9 at 277V AC with loading 36V
    THD: <18% at 277V AC with loading 36V
    Inrush Current (Max.): 50A at 277V AC
    Leakage Current: <0.5mA at 120V AC
  • OUTPUT:
    DC Voltage: 30-38V
    Constant Current Range: 3 x 260mA Ā±5%
    Rated Max. Power: 30W
    Ripple (Max.) Note 2: 0.4 Vp-p
    Efficiency: 80% - 83% (120V)
  • PROTECTIONS:
    Over Current: 100% - 120% constant current limiting, auto-recovery
    Short Circuit: Burp power into protection mode; when the output load returns to normal, the power supply returns to normal operation.
  • ENVIRONMENT:
    Working Temp.: -20Ā°C ~ 40Ā°C ambient operating at full load C29
    Tc Temp.: 90Ā°C at Ta40Ā°C
    Working Humidity: 10% ~ 90% RH, non-condensing
    Storage Temp. & Humidity: -20Ā°C ~ +80Ā°C, 10% ~ 90% RH
  • SAFETY & EMC:
    Safety Standards: UL8750 + UL1310
    EMC Standards Note 3: FCC Part 15B Class 2
    Withstand Voltage: I/P - O/P: 3.75 KV AC
    Isolation Resistance: I/P - O/P: 100M ohms / 500V DC at 25Ā°C
  • CONNECTION:
    Input: UL rated, 18 AWGx2 C 105Ā°C PVC 600V 1569
    Output: UL rated, 18 AWGx2 C 105Ā°C PVC 300V 1569
    Dimming: UL rated, 22 AWGx2 C 105Ā°C PVC 300V
  • 3 YEAR LIMITED WARRANTY

NOTE: All parameters not specially mentioned are measured at 120V AC input, rated load, and 25Ā°C ambient temperature.

Specification Sheets Download

What fixtures is the VTG2DRIVER compatible with?

The VTG2DRIVER is designed exclusively for VONN 2-foot T-Grid lighting fixtures. It should not be used with other T-Grid sizes or incompatible lighting products.

How many 2-foot T-Grid fixtures can one VTG2DRIVER power?

One VTG2DRIVER can power up to three (3) compatible 2-foot T-Grid fixtures, provided the fixtures are installed close enough to the driver for all power cables to reach.

How many VTG2DRIVER units do I need for my installation?

Plan for one VTG2DRIVER for every three 2-foot T-Grid fixtures when the fixtures are installed near one another. For example, 3 fixtures require 1 driver, while 6 fixtures require 2 drivers.

How close should the VTG2DRIVER be installed to the T-Grid fixtures?

Each compatible 2-foot T-Grid fixture includes a 6-foot power cable for connection to the driver. The VTG2DRIVER should be positioned close enough to the group of fixtures so that each fixture cable can reach the driver without extension.

Can one VTG2DRIVER power three T-Grid fixtures that are installed far apart?

No. Although one VTG2DRIVER can support up to three compatible 2-foot T-Grid fixtures, all connected fixtures must be located close enough to the driver for their 6-foot power cables to reach it.

Can I use the VTG2DRIVER with only one or two 2-foot T-Grid fixtures?

Yes. The VTG2DRIVER may be used with fewer than three compatible 2-foot T-Grid fixtures. Three fixtures is the maximum per driver.

Does each 2-foot T-Grid fixture have its own connection cable?

Yes. Each compatible 2-foot T-Grid fixture has its own 6-foot power cable for connection to the VTG2DRIVER.

Can I use the VTG2DRIVER with other sizes of VONN T-Grid fixtures?

No. The VTG2DRIVER is only suitable for VONN 2-foot T-Grid fixtures. Use the appropriate VONN driver specified for other T-Grid sizes.

What should I consider when planning the driver location?

Plan the driver location together with the fixture layout. Since one VTG2DRIVER can power up to three nearby 2-foot T-Grid fixtures and each fixture has a 6-foot power cable, the driver should be positioned so all connected fixture cables can comfortably reach it.
