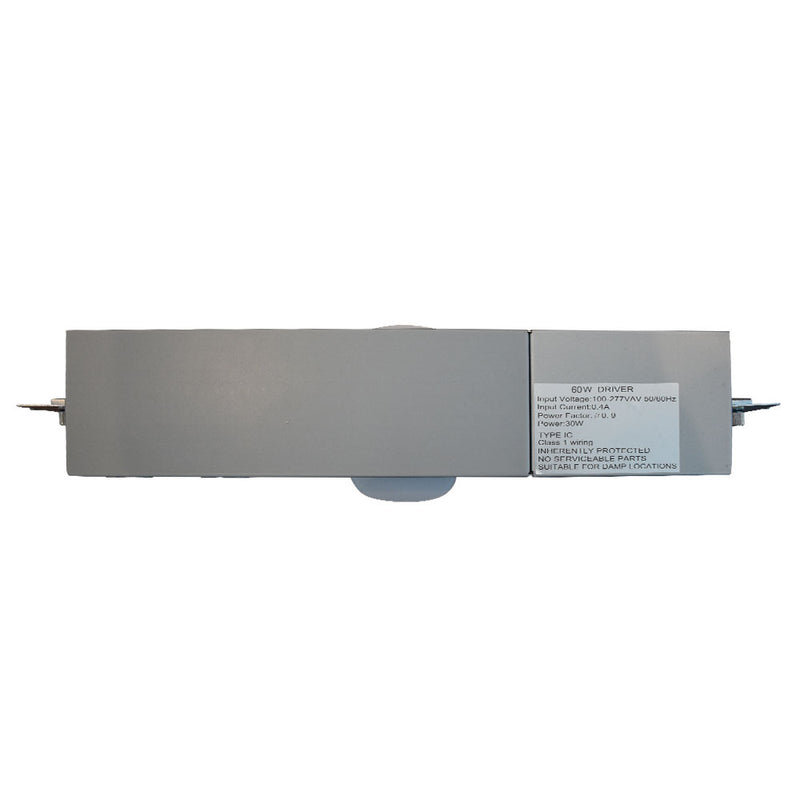

VONN T-Grid VTG4DRIVER LED Lighting 60W, 100-277V Driver For 4FT Long

60W 0-10V Driver suitable for VONN VTG4 Series 4-foot T-Grid Linear Lighting.

• COMPATIBILITY: One driver can support up to three (3) compatible 4-foot T-Grid fixtures.
• DIMENSIONS: 11.7"L x 3.23"W x 1.48"H
• DIMMING: Constant Current, 0-10V Dimming
  Dimming Range: 12-100%
  Dimming Current: <1.5mA
  Compatible Dimmers: Lutron DIVA-DVTV, NOVA-NTSTV-TV
• IP RATING: IP20
• INPUT:
  Voltage & Frequency: 100-277V AC; 50Hz / 60Hz
  AC Current (Max.): 0.7A at 120V AC
  Power Factor: >0.9 at 277V AC with loading 36V
  THD: <18% at 277V AC with loading 36V
  Inrush Current (Max.): 50A at 277V AC
  Leakage Current: <0.5mA at 120V AC
• OUTPUT:
  DC Voltage: 30-38V
  Constant Current Range: 3 x 520mA ±5%
  Rated Max. Power: 60W
  Ripple (Max.) Note 2: 0.4 Vp-p
  Efficiency: 85% - 87% (120V)
• PROTECTIONS:
  Over Current: 100% - 120% constant current limiting, auto-recovery
  Short Circuit: Burp power into protection mode; when the output load returns to normal, the power supply returns to normal operation.
• ENVIRONMENT:
  Working Temp.: -20°C ~ 40°C ambient operating at full load C29
  Tc Temp.: 90°C at Ta40°C
  Working Humidity: 10% ~ 90% RH, non-condensing
  Storage Temp. & Humidity: -20°C ~ +80°C, 10% ~ 90% RH
• SAFETY & EMC:
  Safety Standards: UL8750 + UL1310
  EMC Standards Note 3: FCC Part 15B Class 2
  Withstand Voltage: I/P - O/P: 3.75 KV AC
  Isolation Resistance: I/P - O/P: 100M ohms / 500V DC at 25°C
• CONNECTION:
  Input: UL rated, 18 AWGx2 C 105°C PVC 600V 1569
  Output: UL rated, 18 AWGx2 C 105°C PVC 300V 1569
  Dimming: UL rated, 22 AWGx2 C 105°C PVC 300V

NOTE: All parameters not specially mentioned are measured at 120V AC input, rated load, and 25°C ambient temperature.

What fixtures is the VTG4DRIVER compatible with?

The VTG4DRIVER is designed exclusively for VONN 4-foot T-Grid lighting fixtures. It should not be used with 2-foot T-Grid fixtures or other incompatible lighting products.

How many 4-foot T-Grid fixtures can one VTG4DRIVER power?

One VTG4DRIVER can power up to three (3) compatible 4-foot T-Grid fixtures, provided the fixtures are installed close enough to the driver for all power cables to reach.

How many VTG4DRIVER units do I need for my installation?

Plan for one VTG4DRIVER for every three 4-foot T-Grid fixtures when the fixtures are installed near one another. For example, 3 fixtures require 1 driver, while 6 fixtures require 2 drivers.

How close should the VTG4DRIVER be installed to the T-Grid fixtures?

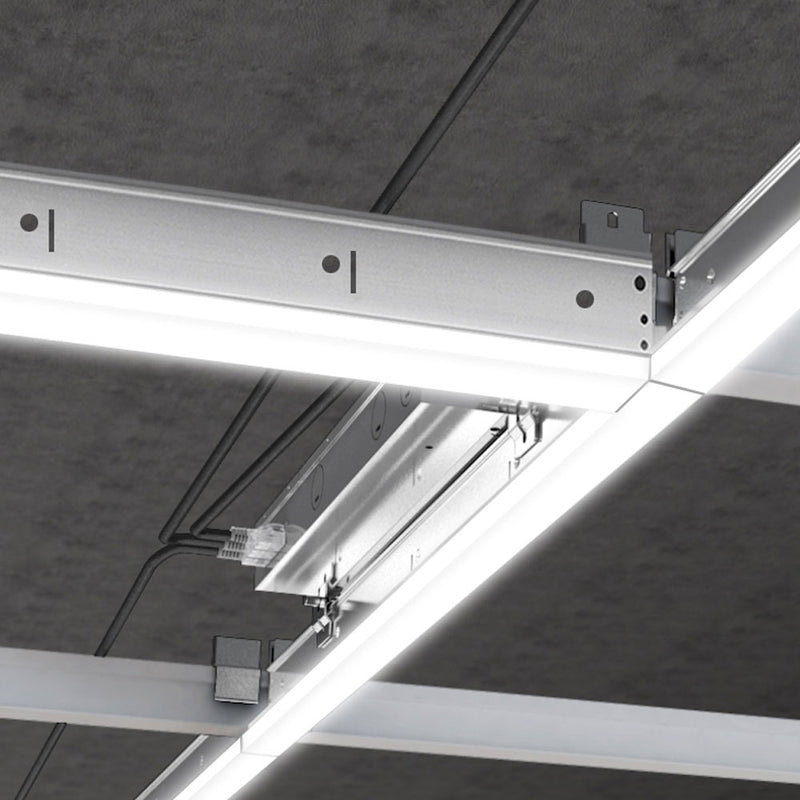

Each compatible 4-foot T-Grid fixture includes an 8-foot power cable for connection to the driver. The VTG4DRIVER should be positioned close enough to the group of fixtures so that each fixture's 8-foot cable can reach the driver without extension.

Can one VTG4DRIVER power three T-Grid fixtures that are installed far apart?

No. Although one VTG4DRIVER can support up to three compatible 4-foot T-Grid fixtures, all connected fixtures must be located close enough to the driver for their 8-foot power cables to reach it.

Can I use the VTG4DRIVER with only one or two 4-foot T-Grid fixtures?

Yes. The VTG4DRIVER may be used with fewer than three compatible 4-foot T-Grid fixtures. Three fixtures is the maximum per driver.

Does each 4-foot T-Grid fixture have its own connection cable?

Yes. Each compatible 4-foot T-Grid fixture has its own 8-foot power cable for connection to the VTG4DRIVER.

Can I use the VTG4DRIVER with VONN 2-foot T-Grid fixtures?

No. The VTG4DRIVER is only suitable for compatible VONN 4-foot T-Grid fixtures. Use the appropriate VONN driver specified for 2-foot T-Grid fixtures.

What should I consider when planning the VTG4DRIVER location?

Plan the driver location together with the fixture layout. Since one VTG4DRIVER can power up to three nearby 4-foot T-Grid fixtures and each fixture has an 8-foot power cable, the driver should be positioned so all connected fixture cables can comfortably reach it.
