VONN RUBIK VMCL000605D012WH 6.25" 5 LIGHT 100-277V LED SURFACE MOUNTED DOWNLIGHT ETL CERTIFIED, COMMERCIAL GRADE, White

SKU: VMCL000605D012WH   VONN Lighting

EnabLED - Licensing Program for LED Luminaires and Retrofit Bulbs
$199.95

54 In Stock.

QUICK SHIP!  Ship In 24-48 Hours

5 Lights LED Fixed Surface Mounted Downlight VMCL000605D012WH, Stock Item Beam Angle 34, White



Installation Guide Download
Specification Sheets Download
Line Drawings Download
IES Photometric File Download
IES Photometric File (IES) Download

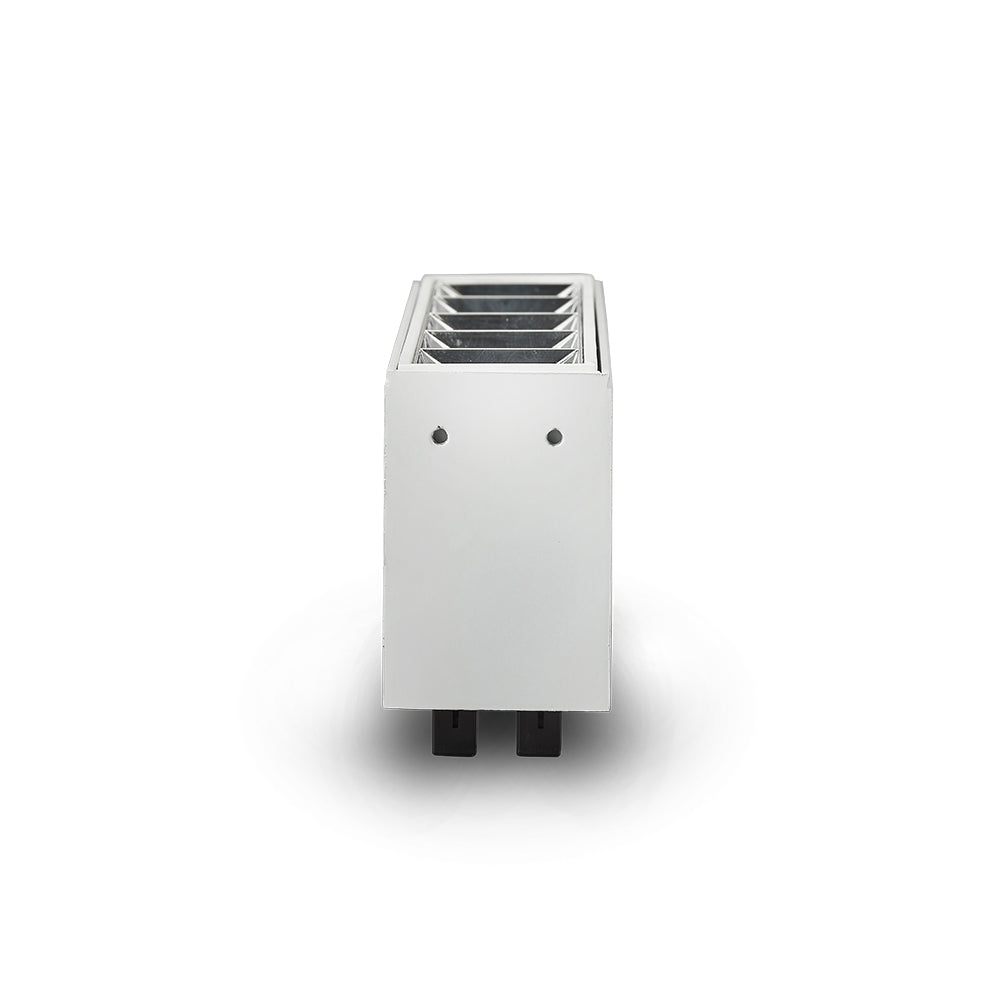

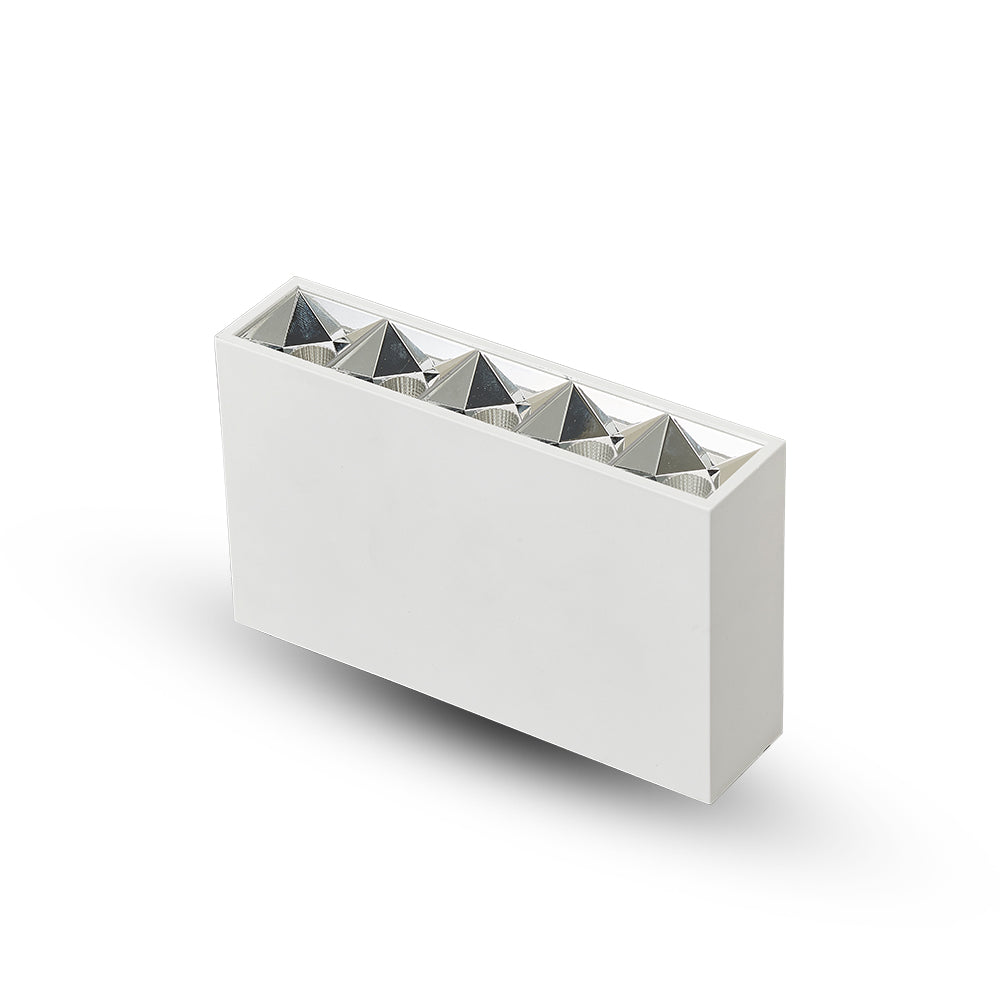

LED Fixed surface mounted downlight, RUBIK Series
• Aluminum body structure available in White finish
• Integrated LED 5-spot fixture, surface mounted with remote driver (included)
• IC Rated
• DIMENSIONS: 6.25"L x 1.5"W x 3.75"H
• HOLE SIZE: 0.59" Diameter
• ELECTRICAL BOX DIMENSIONS (for included remote driver): 8.46"L x 1.77"W x 1.57"H
• LENS BEAM ANGLE: offered in 4 beam angles 12°, 20° &  48°(special order required), 34°(stock beam angle)
• STOCK BEAM ANGLE: 34°
• DIMMABLE: 0-10V
• CCT: 3000 Kelvin color temperature
• BRIGHTNESS: 755.52 Lumens
• WATTAGE: 12W
• VOLTAGE: 100-277V
• CRI 90: is the highest measurement of light about the accuracy of color appearance
• IP Rate: IP20 (dry rated)
• ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 3 Year Limited Warranty
***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4"***

Installation Guide Download
Specification Sheets Download
Line Drawings Download
IES Photometric File Download
IES Photometric File (IES) Download

Additional information

UPC / GTIN

850003683898

Power (W)

12W

More Ways To Shop

SalePromo

Availability

Stock Item

Style

Modern

Application

Commercial

Product Type

Downlight Surface Mount

Hole Size (in)

0.59" Diameter

Dimming

0-10V

Dimmable

Yes

Driver

YG

IP Rate

IP20

CRI

90

Color Temperature

3000K

Voltage (V)

100-277V

Luminous Flux (delivered) (Lm)

755.52

Series

RUBIK

Materials

Aluminum, Iron, PMMA

Product Height

3 to 4 inches

Product Width

1 to 2 inches

Product Length

6 to 7 inches

Product Dimensions (in)

6.18"L x 1.46"W x 3.74"H

Adjustable

N

Finish

White

Lense Beam Angle

12 20 34 48

Room

BedroomDining RoomFoyerHallwayKitchenLiving Room
